8.20 Panel Unit

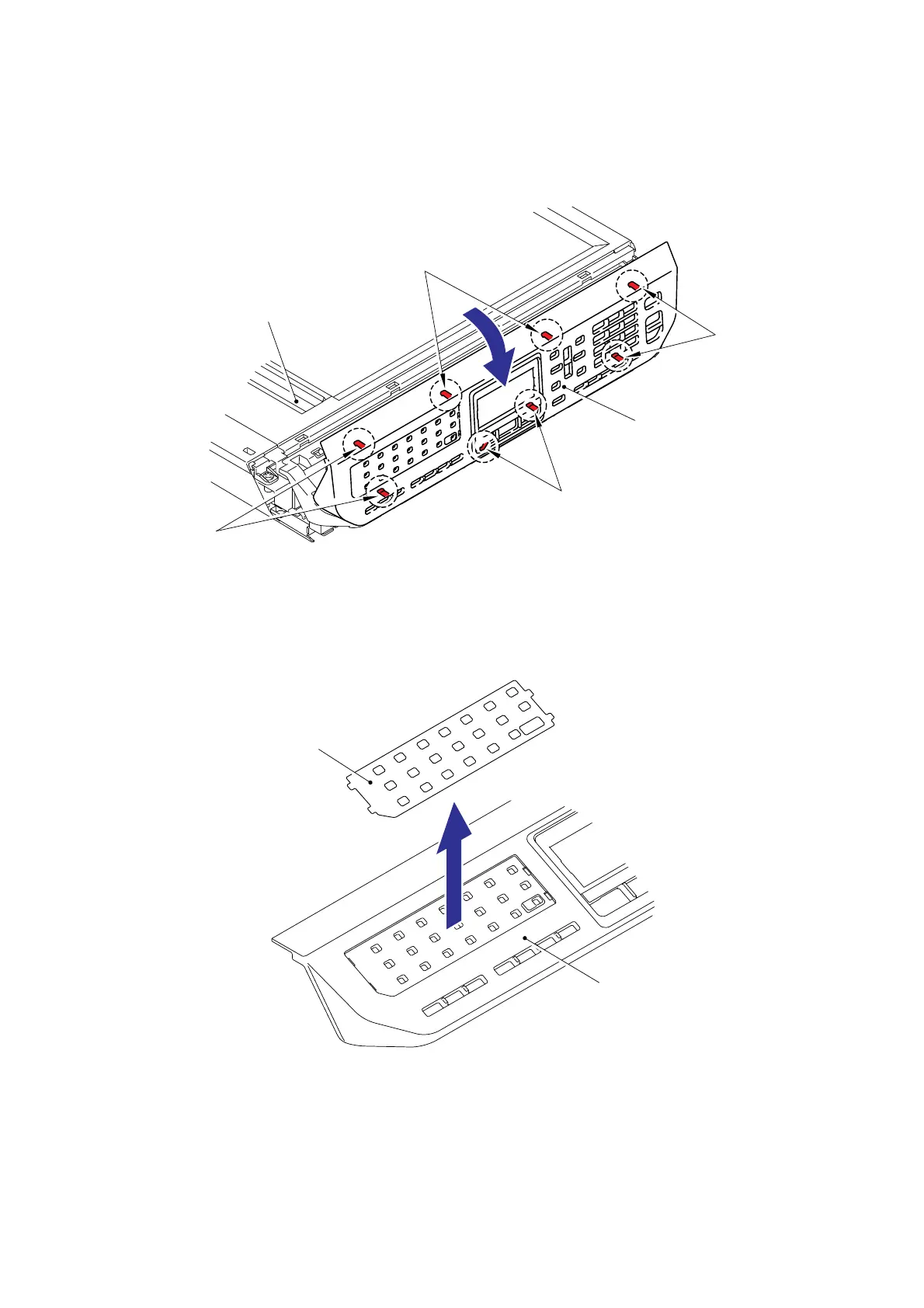

(1) Release the eight Hooks to remove the Printed panel cover from the Document scanner
unit.
Fig. 3-121
(2) Remove the Address label from the Printed panel cover.
Fig. 3-122
Hooks
Printed panel cover
Hooks
Hooks
Hooks
Document scanner unit
A
ddress label
Printed panel cover
