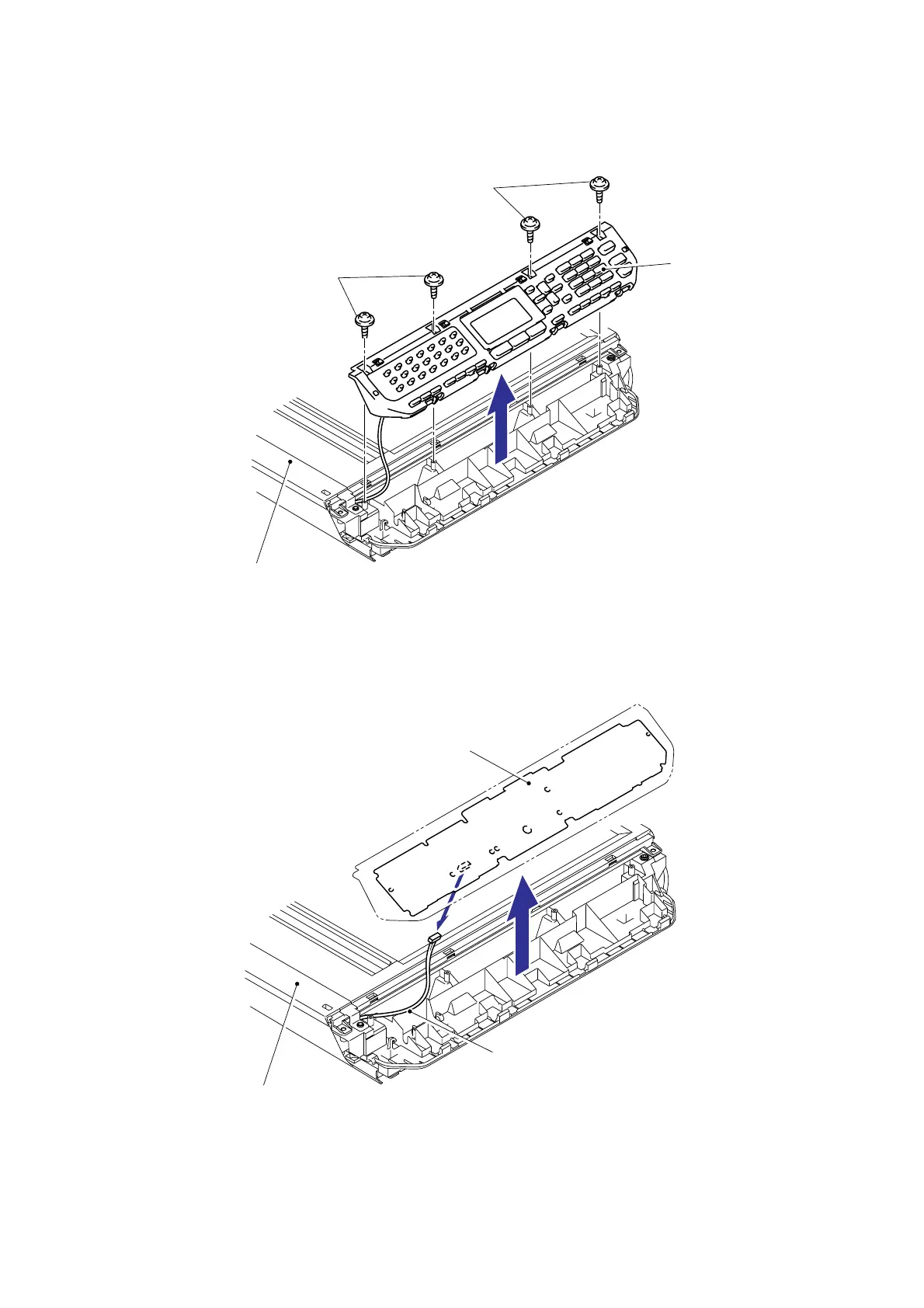

(3) Remove the four cup B M3x10 Taptite screws, and then lift up the Panel unit slightly from
the Document scanner unit.
Fig. 3-123
(4) Gently lift up the Panel unit slightly and disconnect the Connector (CN1) from the Panel
unit.
Fig. 3-124
Taptite, cup B M3x10
Taptite, cup B M3x10
Panel unit
Document scanner unit
Panel unit
CN1
Document scanner unit
