Brother MFC-9840CDW Service Manual

Confidential
3-104
(5) Turn the Panel unit upside down, and then disconnect the Connector (CN4) from the
Panel PCB ASSY.
(6) Release the Lock and disconnect the Flat cable (CN3) from the Panel PCB ASSY.
Note:
- After disconnecting the flat cable(s), check that each cable is not damaged at its end or
short-circuited.
- When connecting the flat cable(s), do not insert it at an angle. After insertion, check that
the cable is not at an angle.

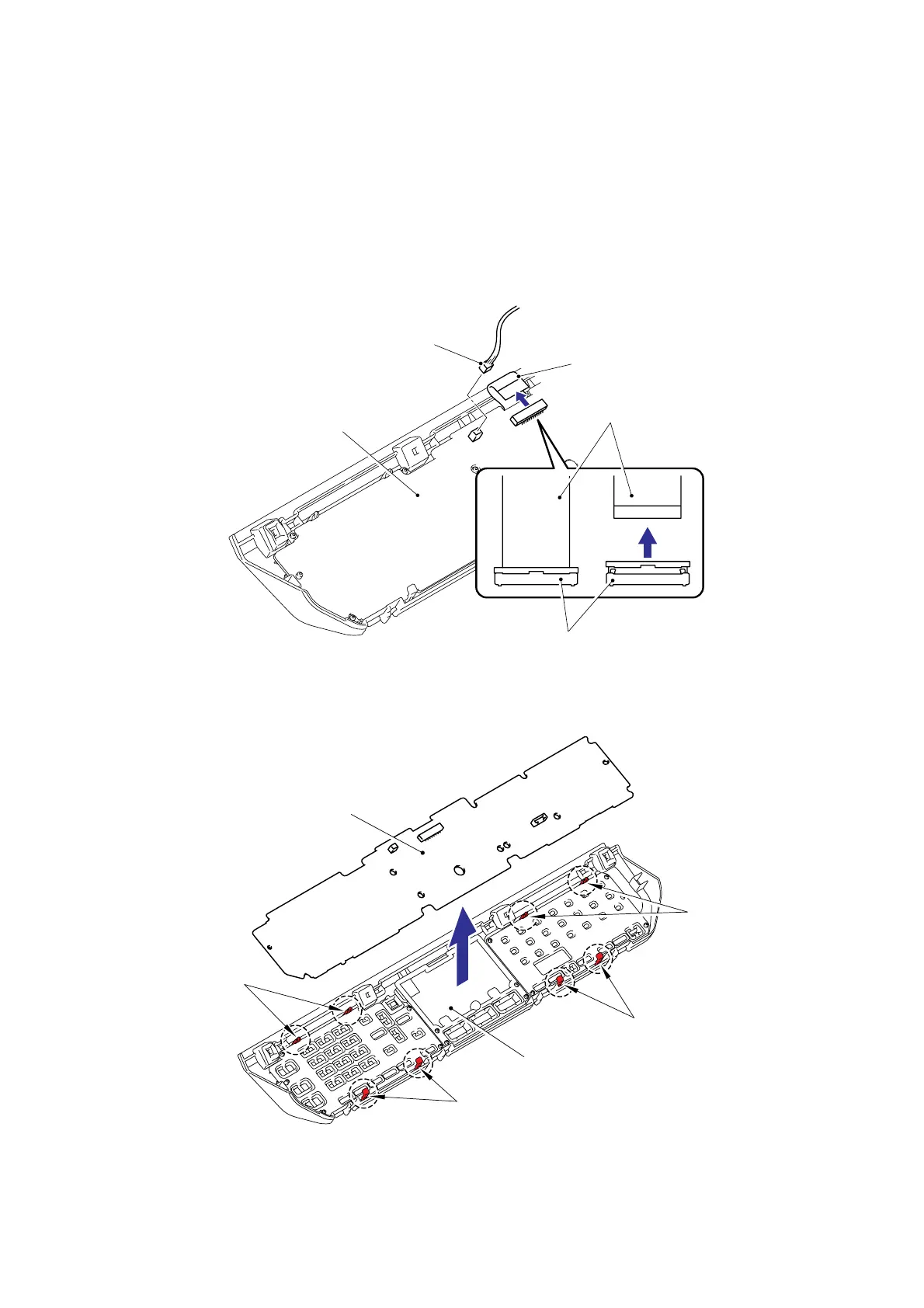

Fig. 3-125
(7) Release the eight Hooks to remove the Panel PCB ASSY from the Panel unit.
Fig. 3-126
Panel PCB ASSY
CN3 (Flat cable)
CN4
Panel PCB ASSY
Hooks
Hooks
Hooks
Hooks
Panel unit
CN3 (Flat cable)
Lock
