Confidential
3-105

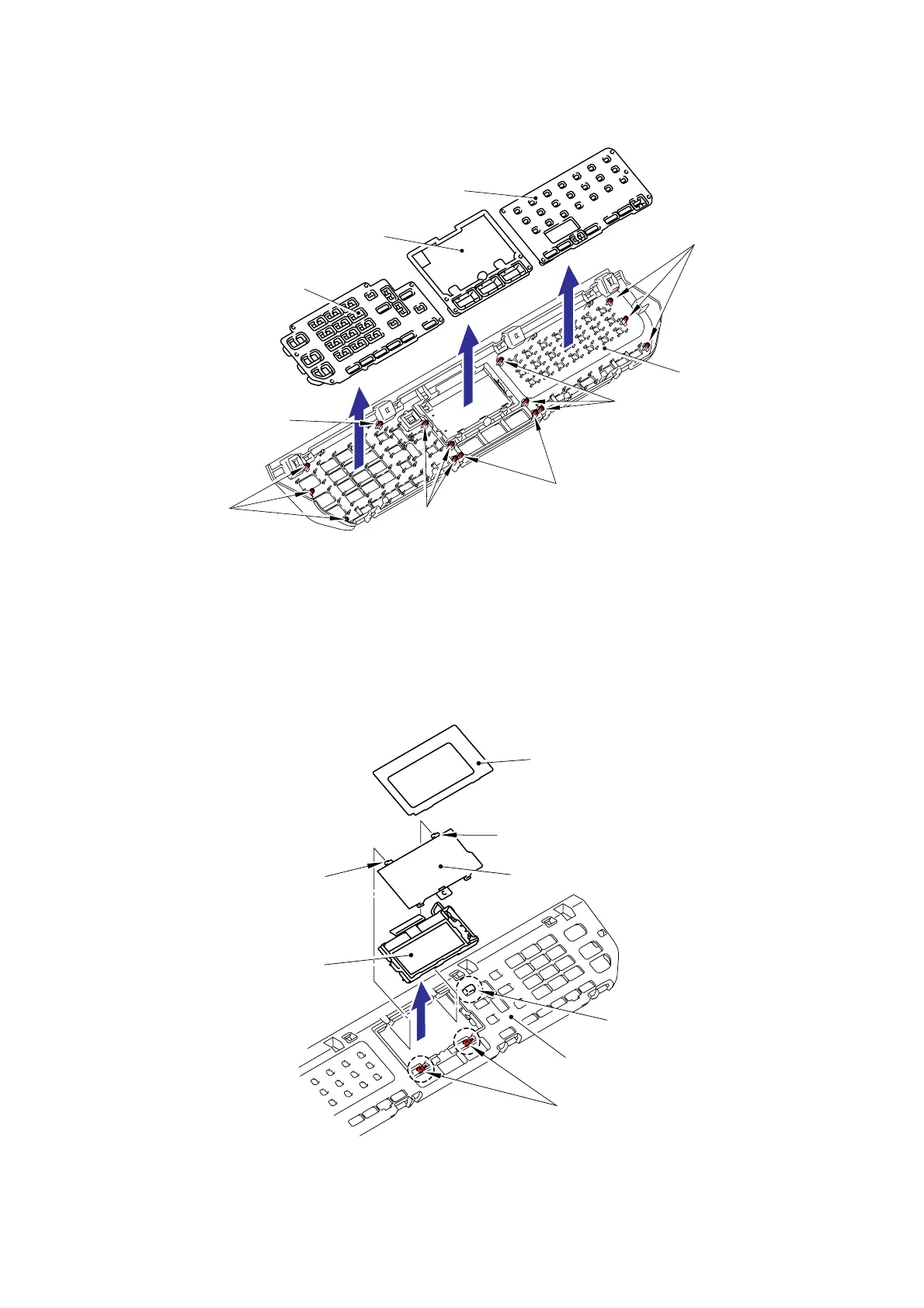

(8) Remove the Rubber key (R, C, L) from the Panel unit.
Fig. 3-127
(9) Remove the Panel insulation sheets.
(10) Release the two Hook A to remove the LCD cover and LCD ASSY from the Panel cover.
Note:
Be careful not to loose the LED guide.
Fig. 3-128
Hooks
Hooks
Hooks
Hooks
Hooks
Panel unit
Rubber key R
Hook
Rubber key L
Rubber key C
LCD ASSY
Hook A
Panel cover
LCD cover
Panel insulation sheets
LED guide
Hook
Hook
