8.4 MP Lift Arm 2/ MP Roller Holder ASSY
(1) Press the Front cover release button, and open the Front door unit ASSY.
(2) Release the two Hooks to remove the MP feed frame cover from the Front door unit ASSY.

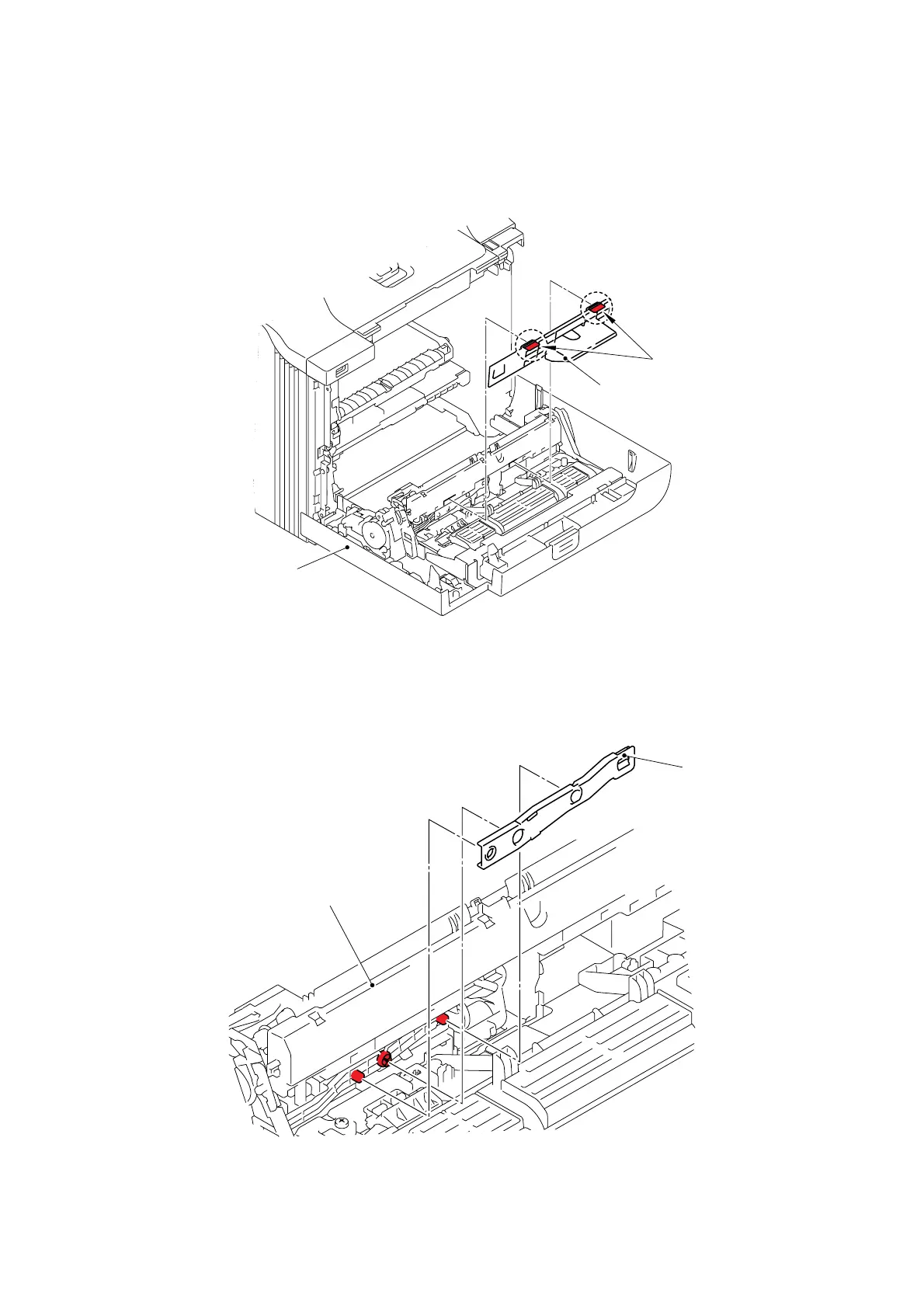

Fig. 3-11
(3) Remove the MP lift arm 2.
Fig. 3-12
Hooks
MP feed frame cover
Front door unit ASSY
Front door unit ASSY
MP lift arm 2
<Front>
<Front>
