8.23 Battery ASSY
(1) Release the Hook to remove the Battery ASSY from the Joint cover ASSY.
(2) Disconnect the connector from the Battery ASSY.
Caution:
- There is danger of explosion if the battery is incorrectly replaced.
- Do not disassemble or recharge the battery.
- Do not dispose of the battery in fire.
- Used batteries should be disposed according to the local regulations.

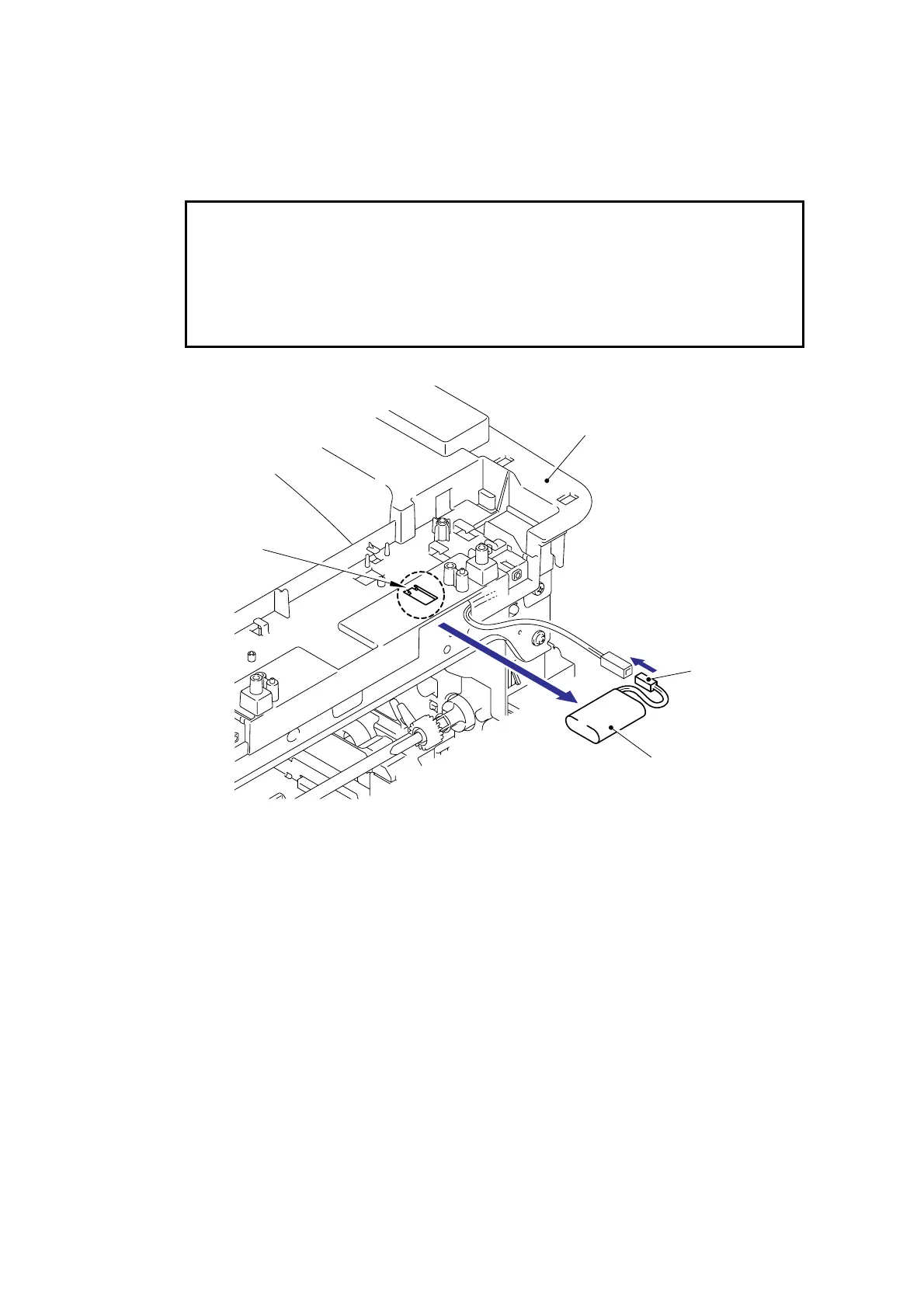

Fig. 3-154
Battery ASSY
Connector
Joint cover ASSY
Hook
