Brother MFC-9840CDW - Belt Unit Drive Motor ASSY

Confidential
3-190
8.59 Belt Unit Drive Motor ASSY

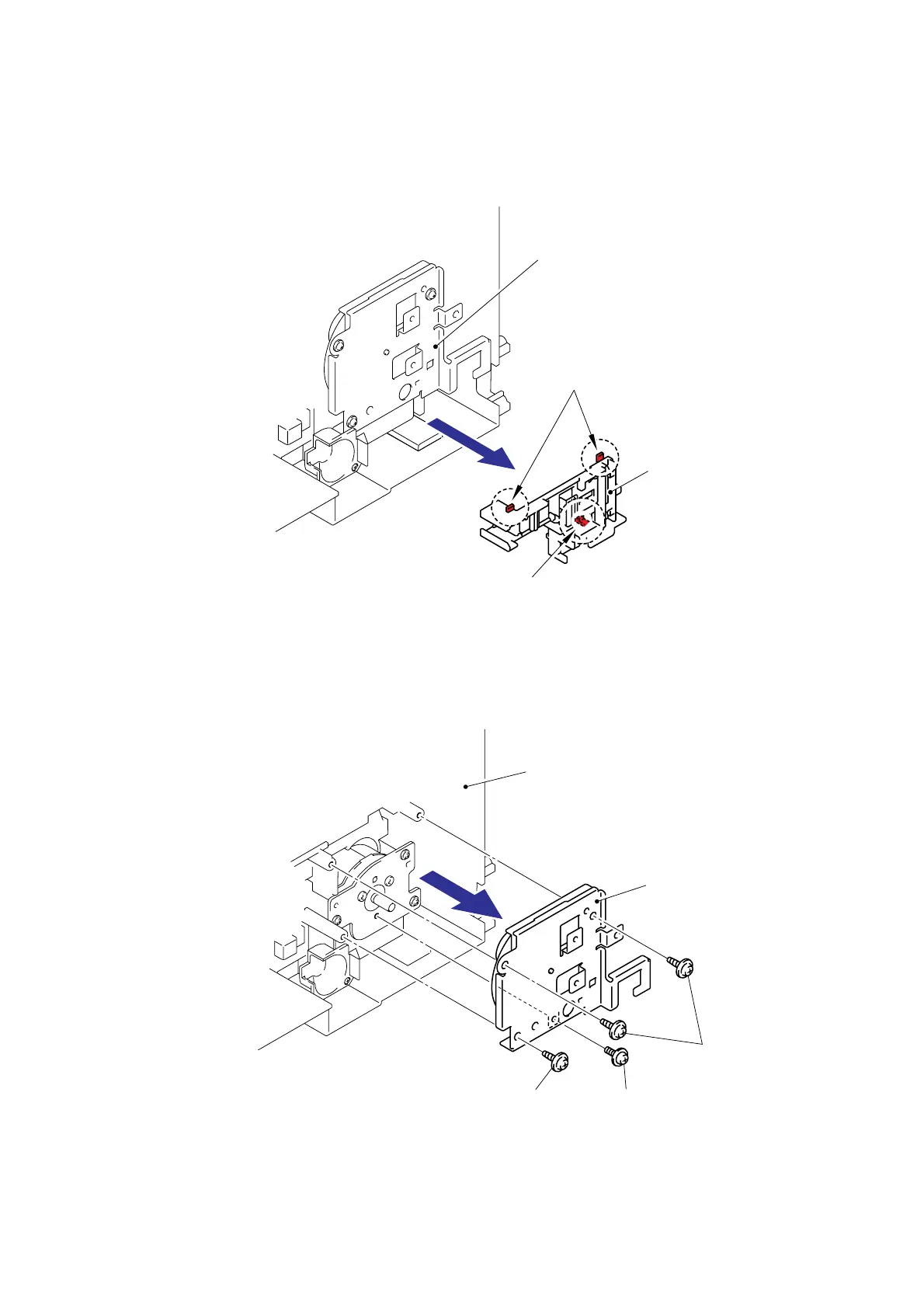

(1) Release the three Hooks to remove the Harness holder 16AWG from the Belt gear plate
ASSY.
Fig. 3-282
(2) Remove the three cup B M4x12 Taptite screws and Screw, cup M3x6, and then remove the
Belt gear plate ASSY from the Frame unit.
Fig. 3-283
Belt gear plate ASSY
Hooks
Harness holder 16AWG
Hook
<Right side>
Frame unit
Taptite, cup B M4x12
Screw, cup M3x6
Taptite, cup B M4x12
Belt gear plate ASSY
<Right side>
