Confidential
3-191

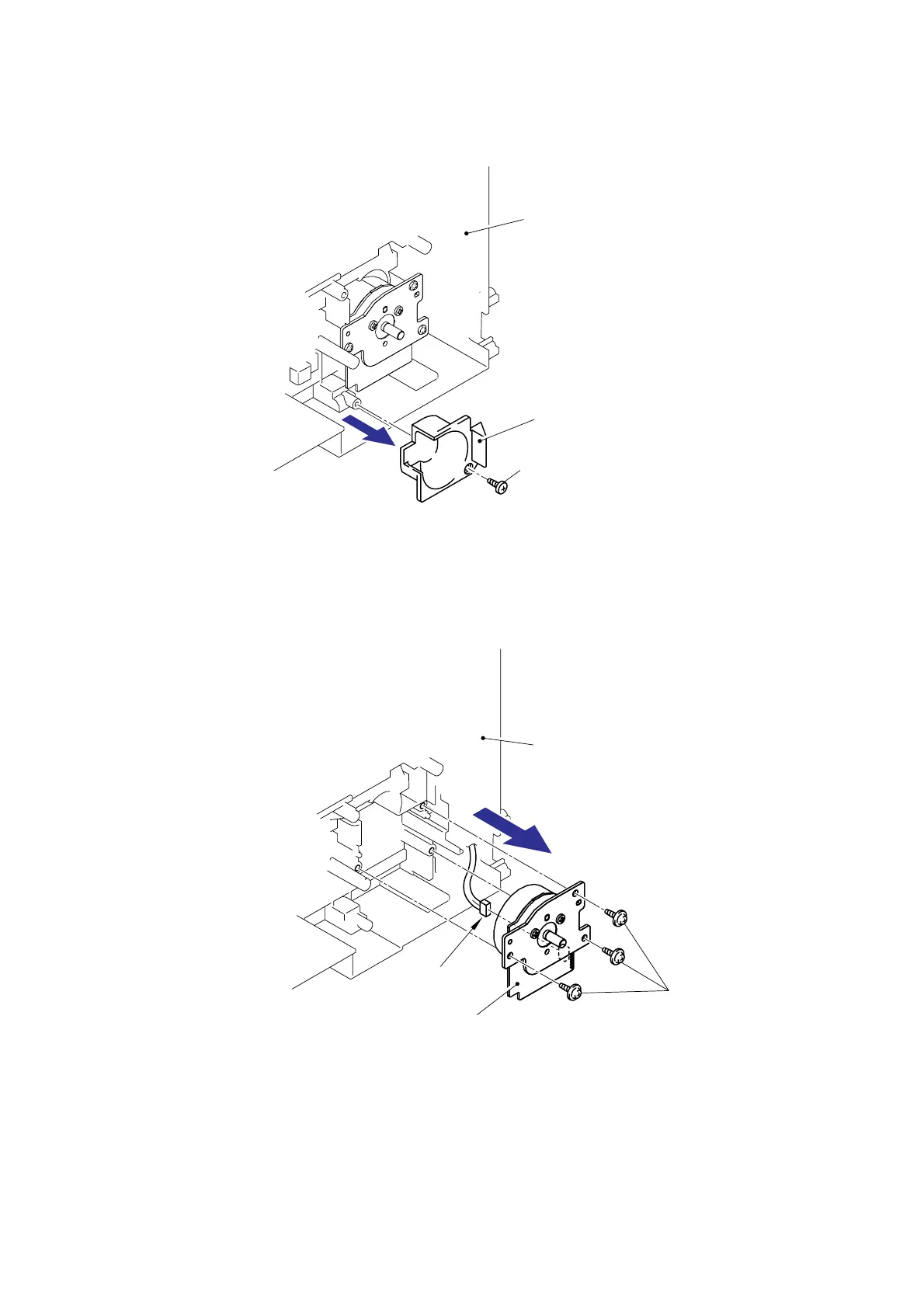

(3) Remove the bind B M3x10 Taptite screw, and then remove the LV fan duct from the Frame
unit.
Fig. 3-284
(4) Remove the three cup B M4x12 Taptite screws, and then remove the Belt unit drive motor
ASSY from the Frame unit.
(5) Disconnect the Connector from the Belt unit drive motor ASSY.
Fig. 3-285
*1
Tightening Note:
When tightening the screw, slowly turn it counterclockwise (in the direction to loosen the
screw) with your hand until you feel that the screw is a little dropped in the hole. Then, slightly
turn it clockwise (in the direction to tighten the screw) with your hand and tighten it according
to the specified torque with a screwdriver.
LV fan duct
Frame unit
Taptite, bind B M3X10
(Tightening torque: 0.80 ±0.1 N m) *1
<Right side>
Frame unit
Taptite, cup B M4x12
(Tightening torque: 1.20 ±0.1 N m) *1
Connector
Belt unit drive motor ASSY
<Right side>
To Next Page
