Brother MFC-9840CDW - Hook Shaft; Hook; Hook Spring

Confidential
3-150

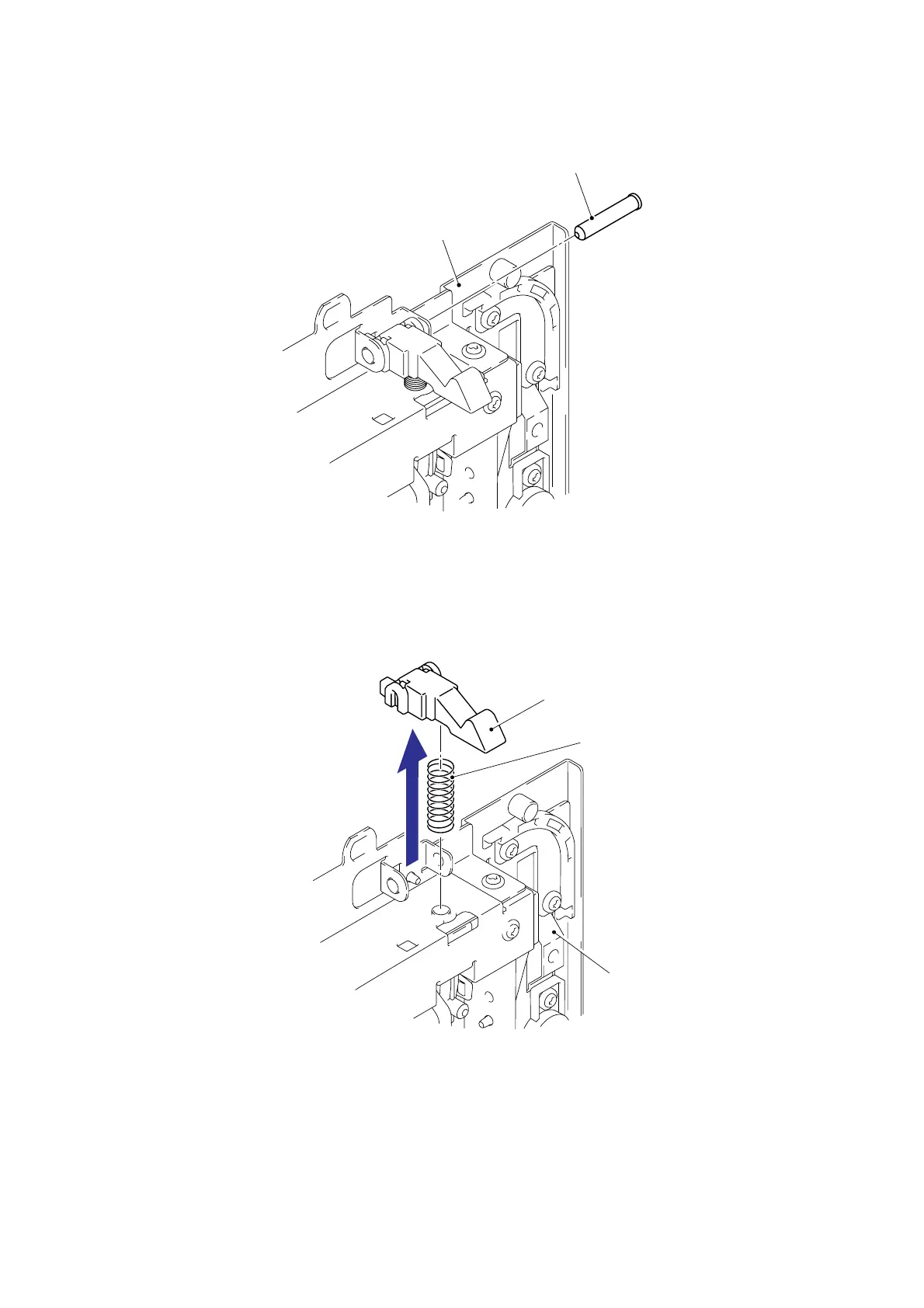

8.36 Hook Shaft/ Hook/ Hook Spring
(1) Remove the Hook shaft.
Fig. 3-210
(2) Remove the Hook and Hook spring L from the MP unit ASSY.
(3) Remove the Hook and Hook spring R from the MP unit ASSY in the same way.
Fig. 3-211
Assembling Note:
When assembling the Hook spring, be sure to assemble each of the Hook springs Left and Right
onto the correct sides (Left is longer silver one and Right is shorter black one).
MP unit ASSY
Hook spring L
Hook
Hook shaft
MP unit ASSY
<Left side>
<Left side>
