9.5 LT Relay PCB ASSY
(1) Disconnect the all connectors from the LT relay PCB ASSY.
CN1 CN3 CN4
CN6
CN5CN2

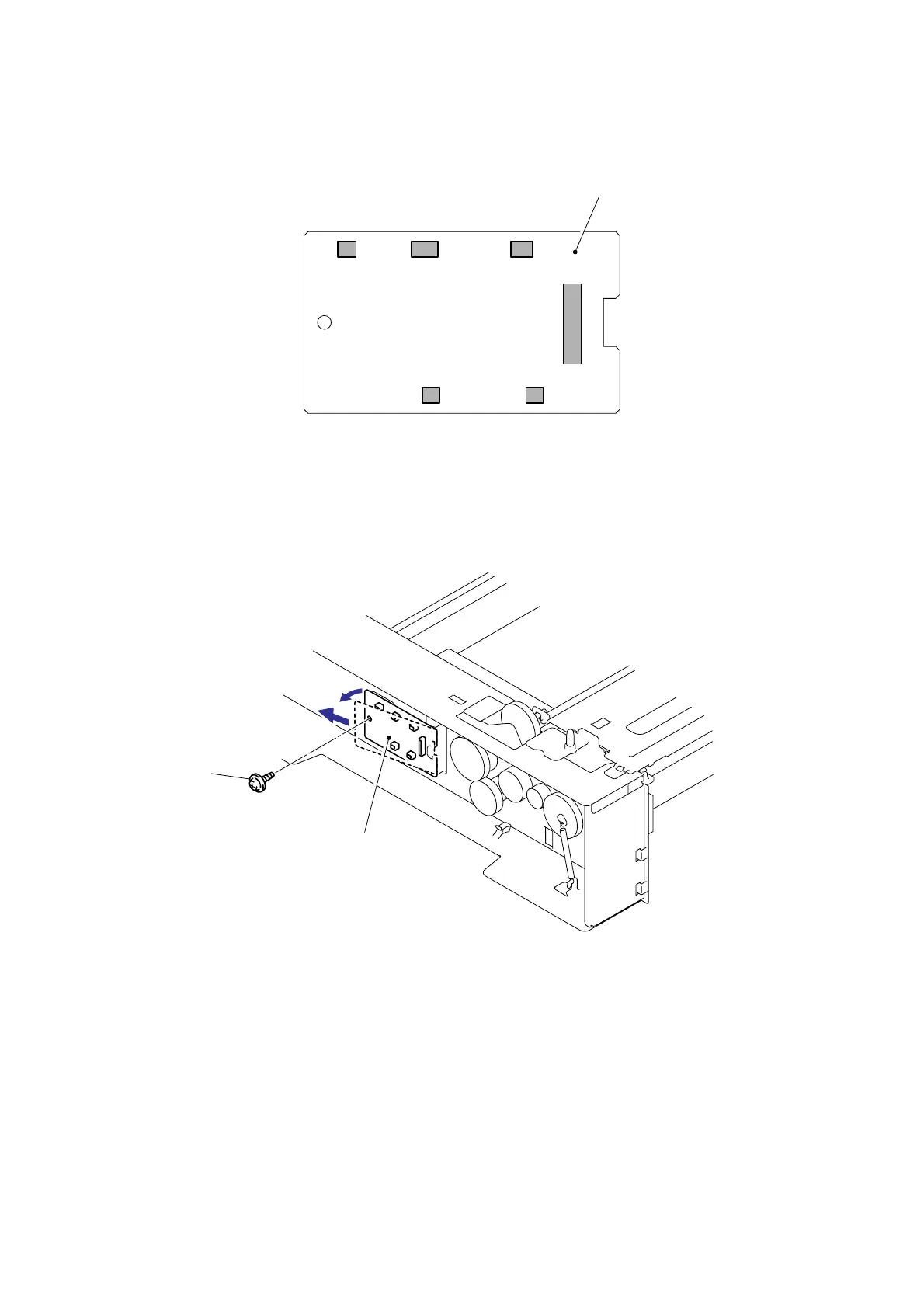

Fig. 3-300
(2) Remove the cup S M3x6 Taptite screw, and then remove the LT relay PCB ASSY.
Fig. 3-301
LT relay PCB ASSY
LT relay PCB ASSY
Taptite, cup S M3x6
