Brother MFC-9840CDW - Drum Unit Fan (OPC)

Confidential
3-59
8.14 Drum Unit Fan (OPC)

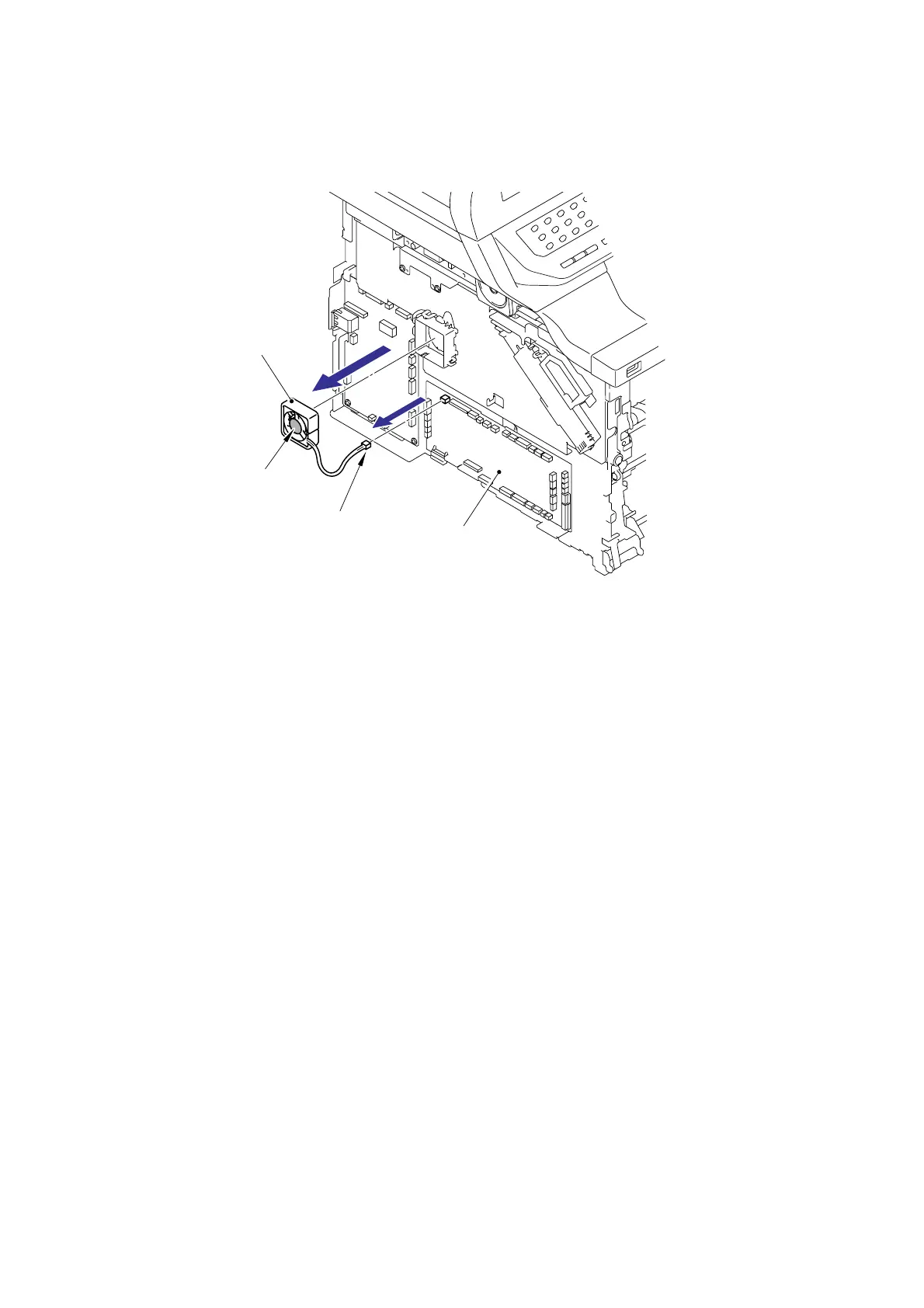

(1) Disconnect the Connector from the Engine PCB ASSY, and then remove the Drum unit fan
(OPC).
Fig. 3-46
Assembling Note:
When assembling the Drum unit fan (OPC), place it so that the attached Label faces outwards.
Drum unit fan (OPC)
Engine PCB ASSY
Connector
<Left side>
Label
