Brother MFC-9840CDW - LT Cover Left

Confidential
3-198
9.3 LT Cover Left

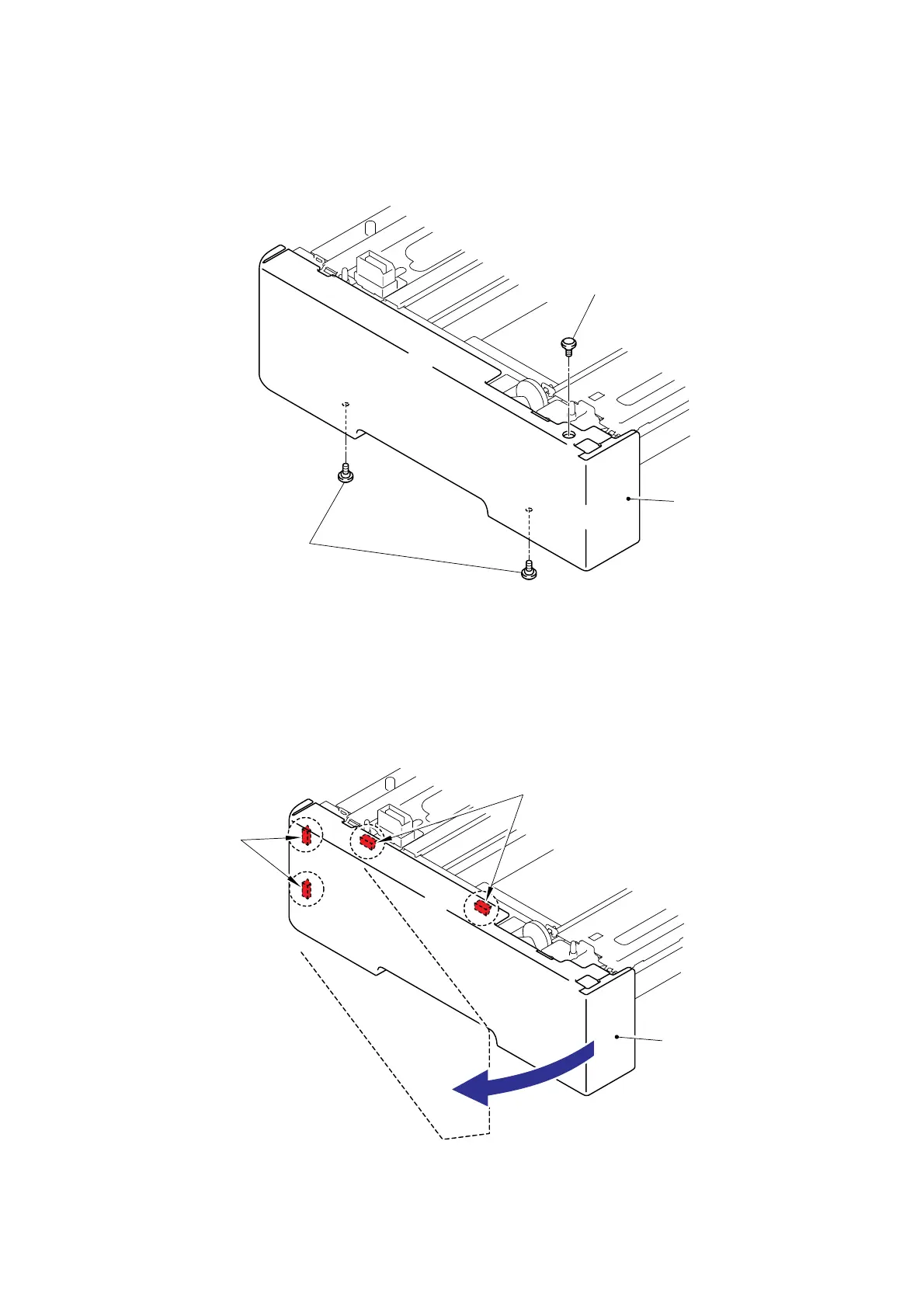

(1) Remove the three Shoulder screws from the LT cover left.
Fig. 3-296
(2) Release the two Hooks on the upper side and the two Hooks on the Back to remove the LT
cover left.
Fig. 3-297
Shoulder screw
Shoulder screws
LT cover left
LT cover left
Hooks
Hooks
