Brother MFC-9840CDW - LT Paper Feed Frame Unit

Confidential
3-204
9.9 LT Paper Feed Frame Unit

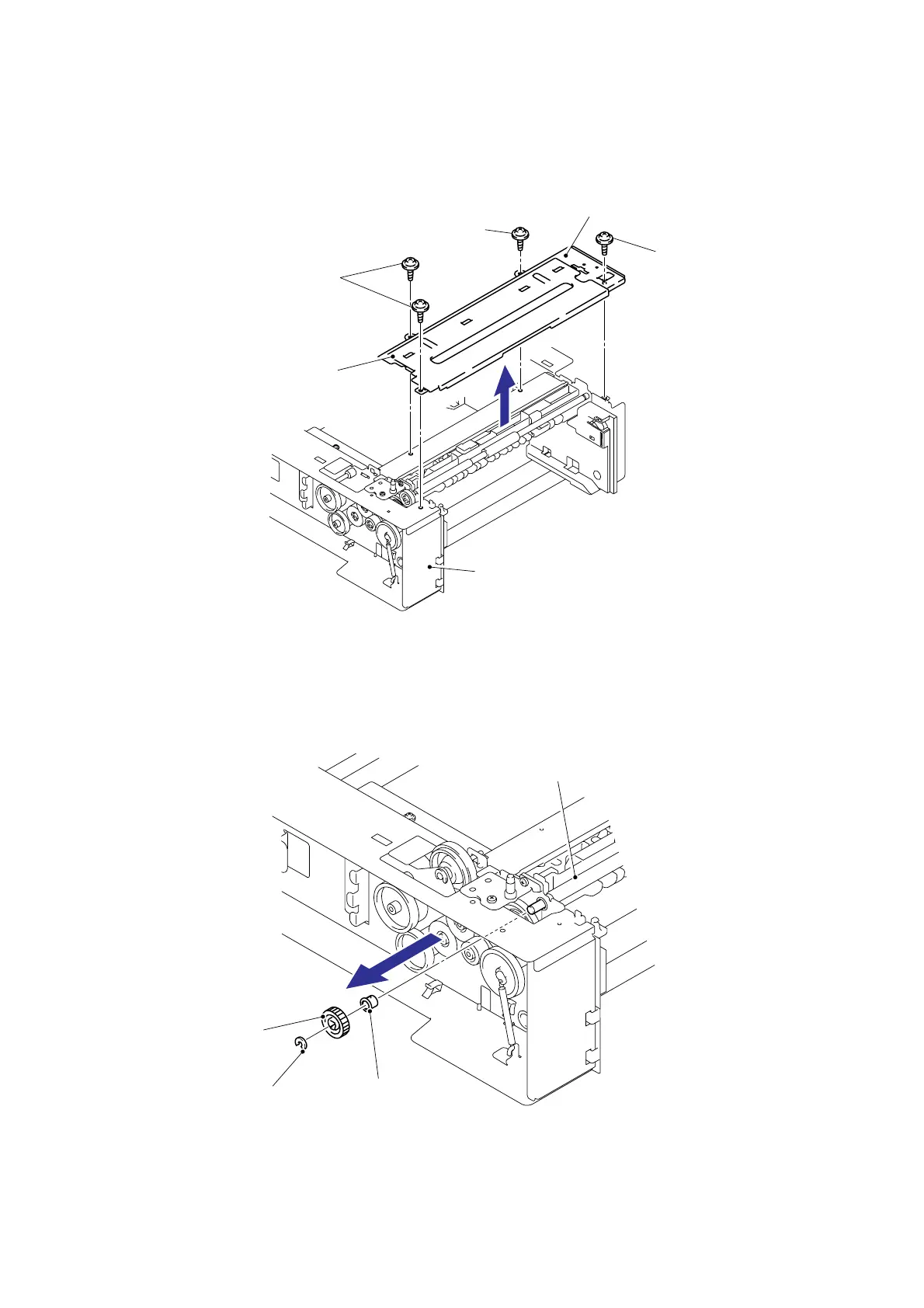

(1) Remove the four cup S M3x6 Taptite screws, and then remove the LT front cover and LT
beam F from the LT frame unit.
Fig. 3-308
(2) Remove the Retaining ring E4 from the F roller shaft LT and remove the Gear 24 LT and FR
bush.
Fig. 3-309
Taptite, cup S M3x6
LT front cover
LT frame unit
Taptite, cup S M3x6
Taptite, cup S M3x6
F roller shaft LT
Retaining ring E4
FR bush
Gear 24 LT
LT beam F
<Front>
<Left side>
