Confidential
3-205

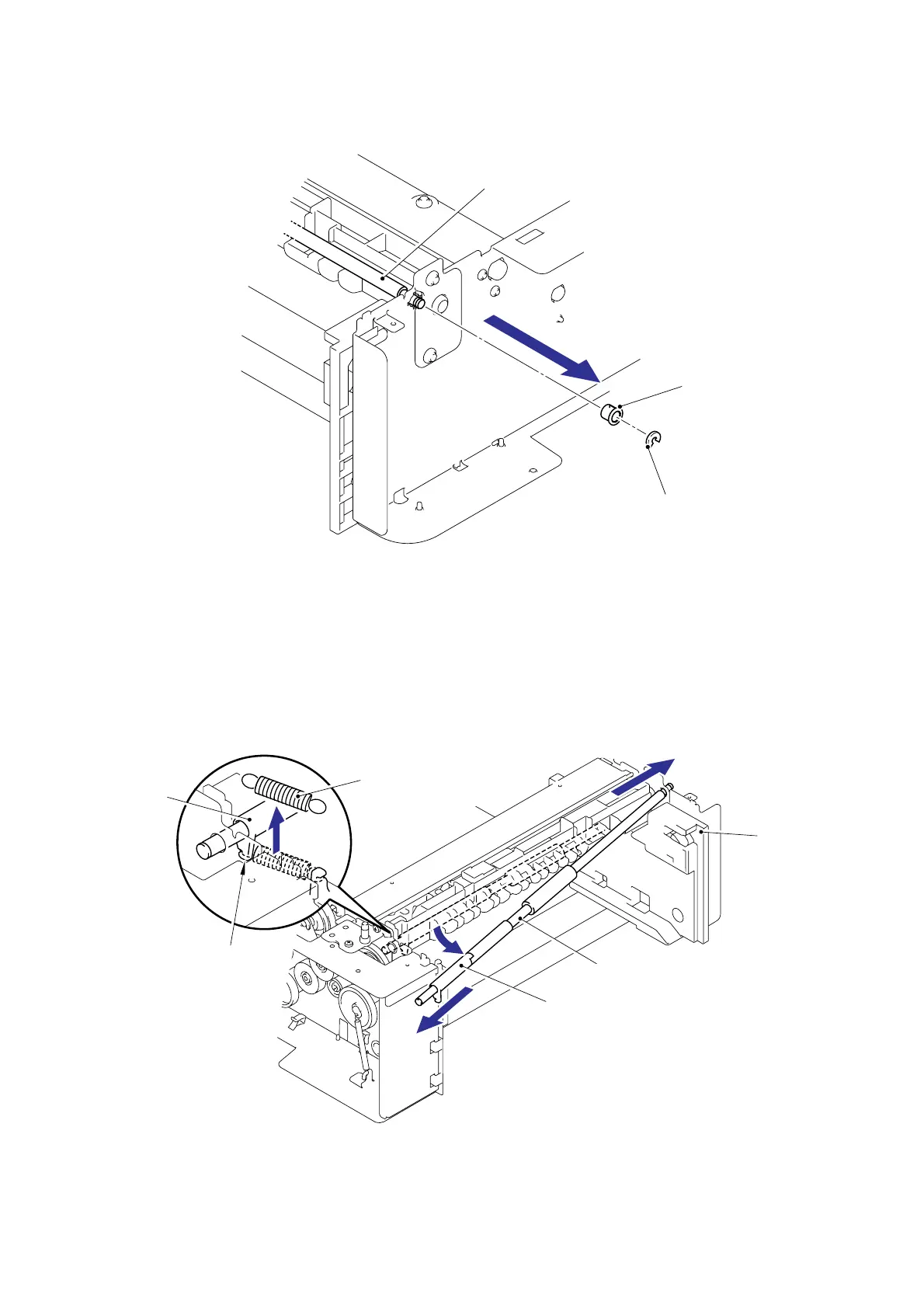

(3) Remove the Retaining ring E3 from the F roller shaft LT and remove the FR bush TR.
Fig. 3-310
(4) Remove the Lift spring from the Hook of the Lift lever A.
(5) Remove the F roller shaft LT from the LT frame unit by pushing right (5a), pull left end
forward (5b) and remove leftwards (5c).
Fig. 3-311
F roller shaft LT
FR bush TR
Retaining ring E3
LT frame unit
F roller shaft LT
5a
5c
5b
<Right side>
<Front>
Lift spring
Hook
Lift lever A
Lift lever A
