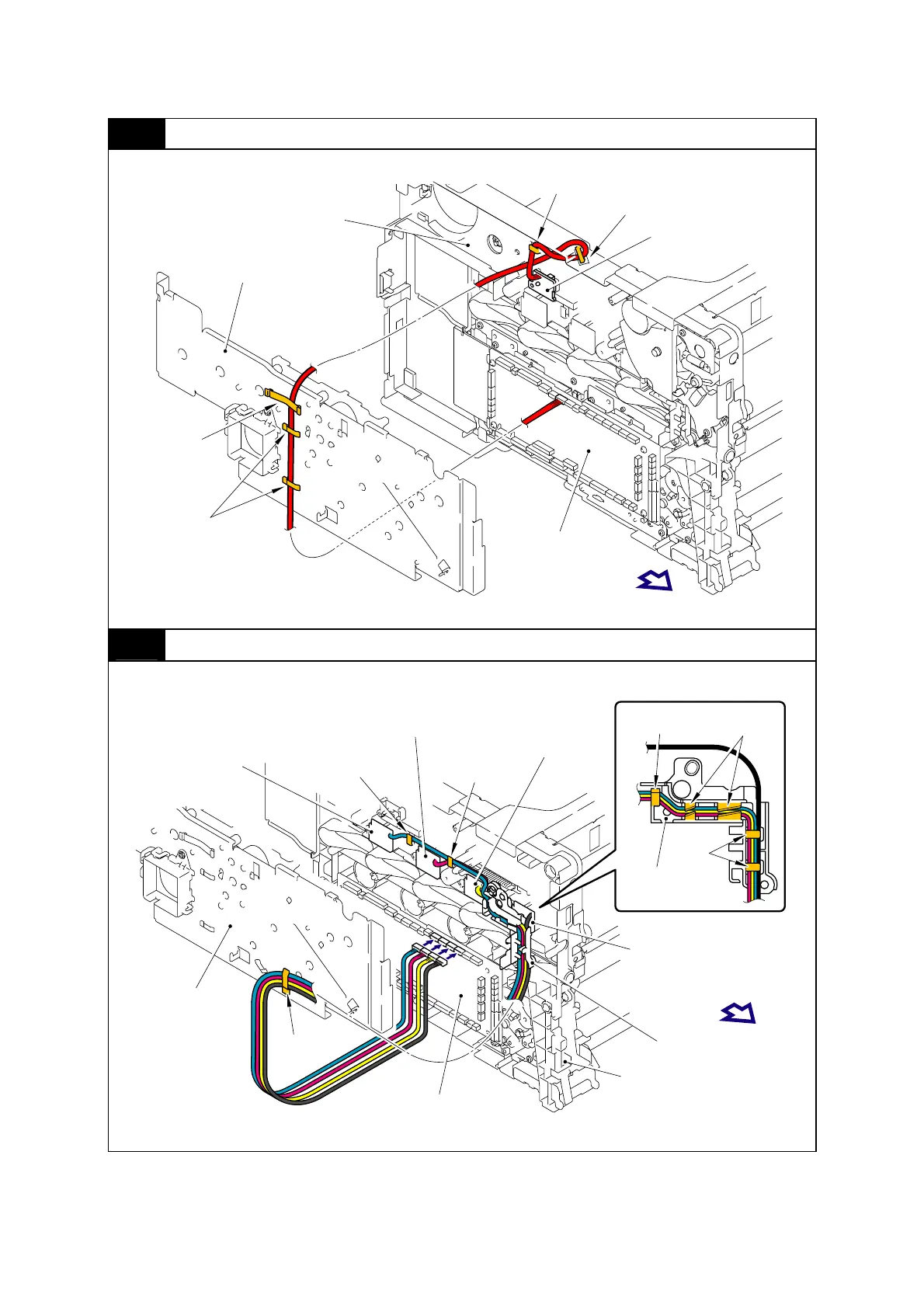

4 Develop release sensor PCB ASSY
5 Toner sensor PCB ASSY K, Y, M, C (TE/NEW)
Develop release
sensor PCB
ASSY
Hook
Hook
Engine PCB ASSY
Front
Front
Clamps
Clamp
Develop gear plate ASSY
Side frame L
Hook
Hooks
Hooks
Release drive
holder
Toner sensor PCB
A
SSY K (TE/NEW)
Toner sensor PCB
A
SSY Y (TE/NEW)
Hook
Hook
Clamp
Side frame L
Release drive holder
Engine PCB ASSY
Develop gear
plate ASSY
Toner sensor PCB
A
SSY C (TE/NEW)
Toner sensor PCB
A
SSY M (TE/NEW)
