8.16 Paper stopper

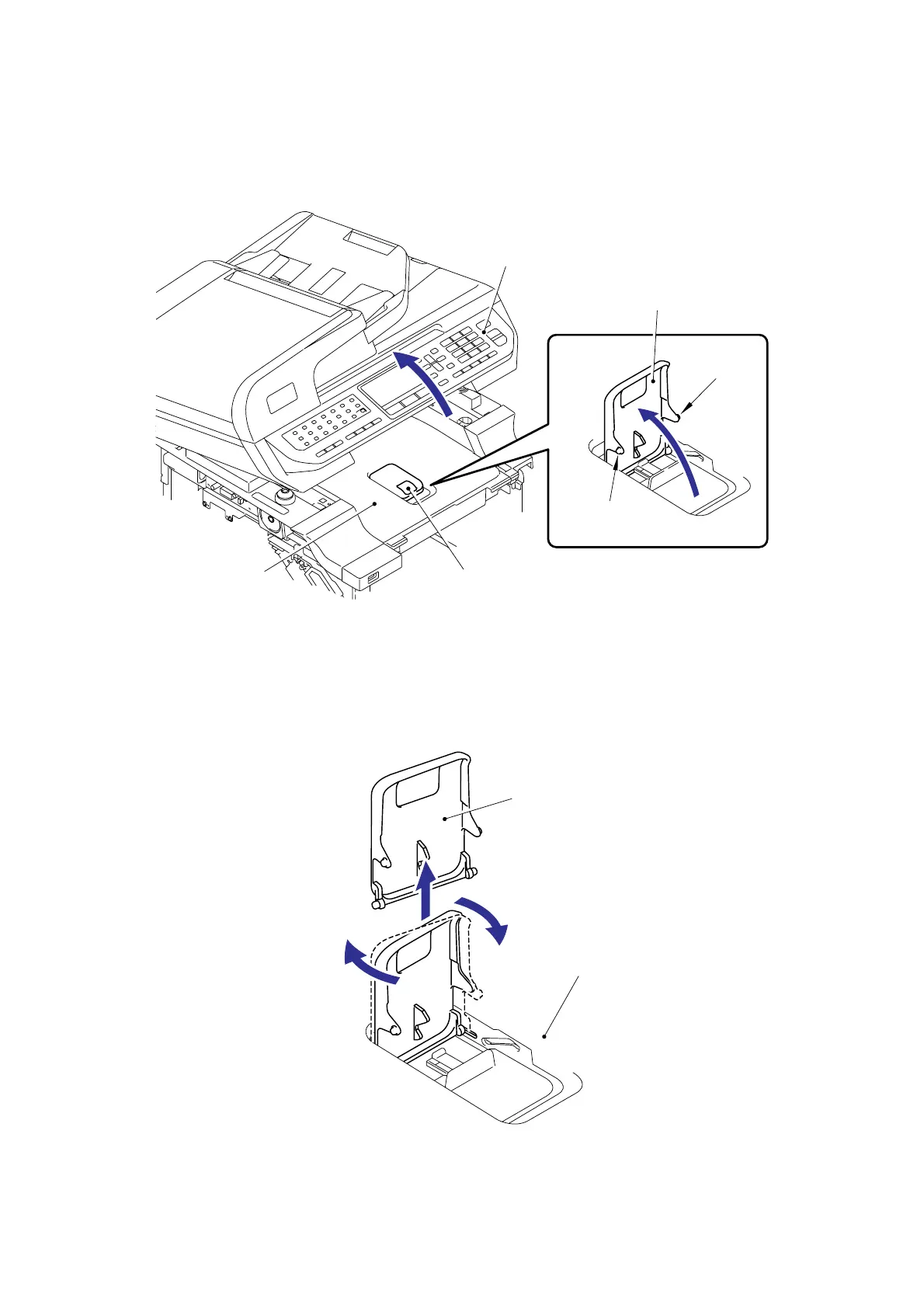

(1) Open the Document scanner unit ASSY.
(2) Open the Paper stopper and release the Pins on both sides.
Fig. 3-48
(3) Turn the Paper stopper in the direction of arrow 3a and remove it from the Joint cover
ASSY.
Fig. 3-49
Paper stopper
Paper stopper
Pin
Pin
Document scanner unit ASSY
Paper stopper
Joint cover ASSY
3a
3a
3b
Joint cover ASSY
