Confidential
3-7

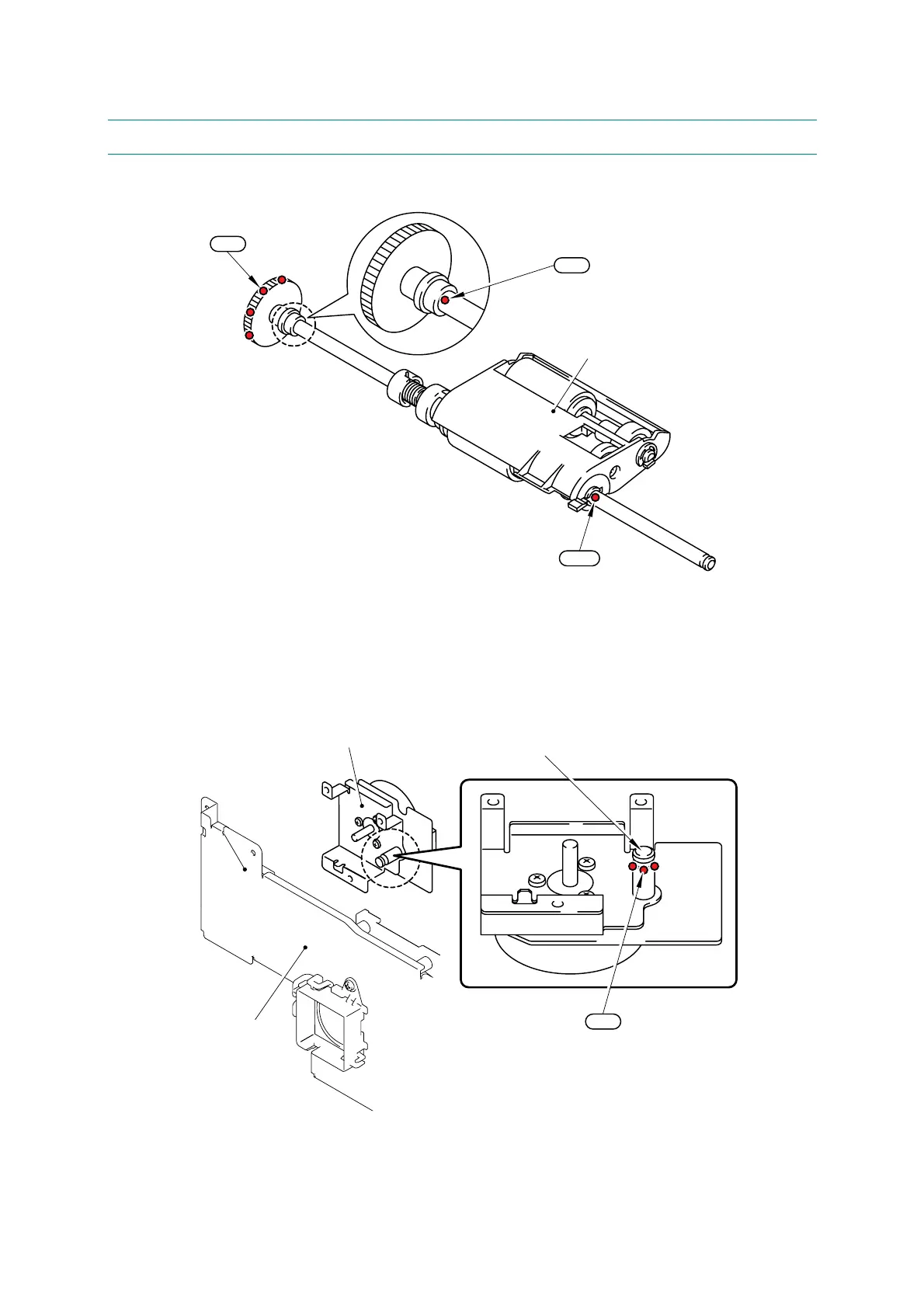

4. LUBRICATION
GE2
PG2
BDX1
PG2: PG-661(W) (2mm dia. ball)
GE2: GE-676 (2mm dia. ball)
BDX1: BDX-313 (1mm dia. ball)
BG2
BG2: BG-MU (2mm dia. ball)
Motor shaft
Develop drive motor ASSY
Develop gear plate ASSY
3 places
Separation roller shaft ASSY
4 places
