Brother MFC-9840CDW - Fuser Unit Fan (FU); LVPS Fan (PS)

Confidential
3-184

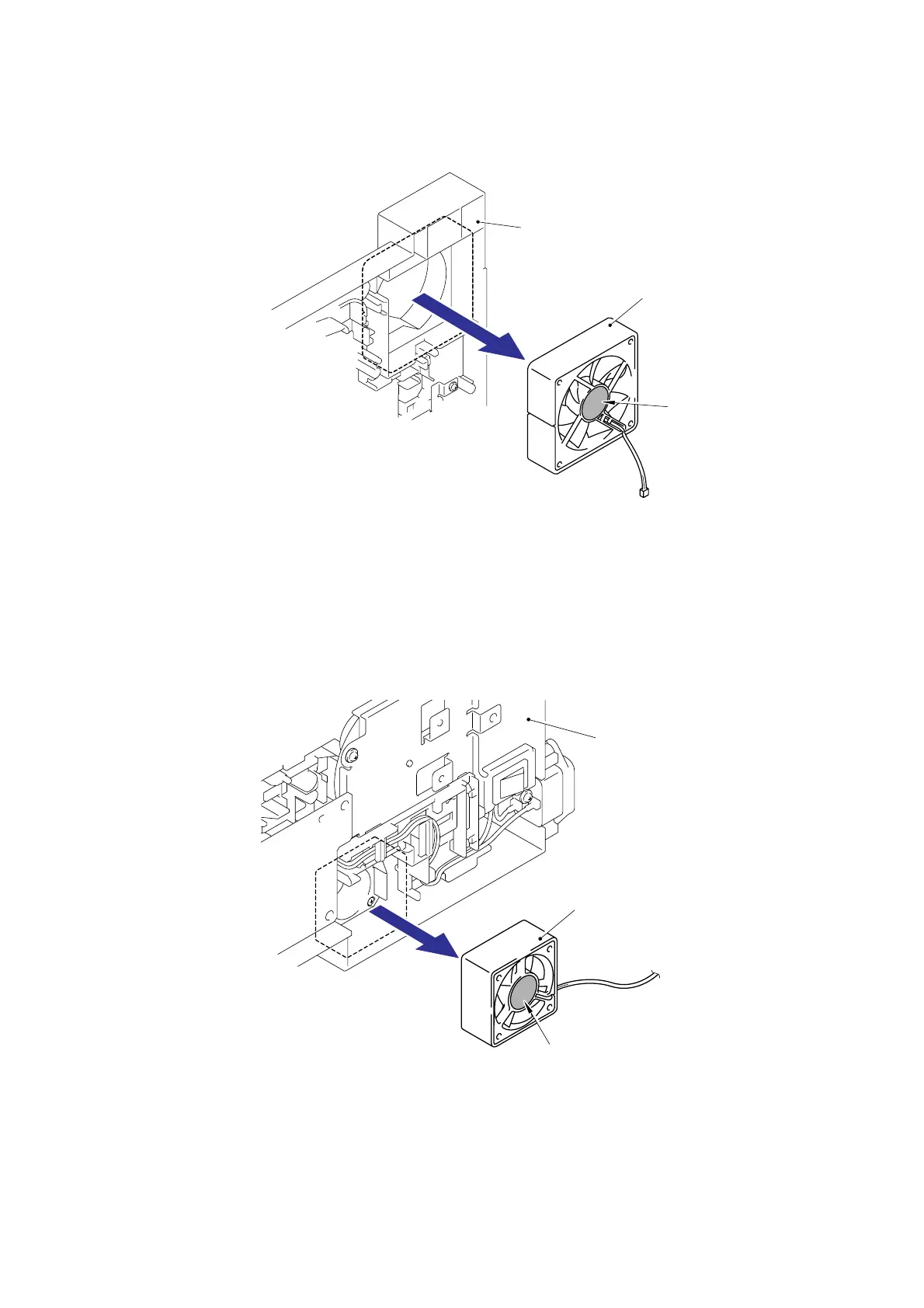

8.55 Fuser Unit Fan (FU)
(1) Remove the Fuser unit fan (FU) from the Frame unit.
Fig. 3-271
Assembling Note:
When assembling the Fuser unit fan (FU), place it so that the attached Label faces outwards.
8.56 LVPS Fan (PS)
(1) Remove the LVPS fan (PS) from the Frame unit.
Fig. 3-272
Assembling Note:
When assembling the LVPS fan (PS), place it so that the attached Label faces outwards.
Frame unit
Fuser unit fan (FU)
Frame unit
LVPS fan (PS)
<Right side>
<Right side>
Label
Label
