Brother MFC-9840CDW - Ps Pcb Unit

Confidential
3-25

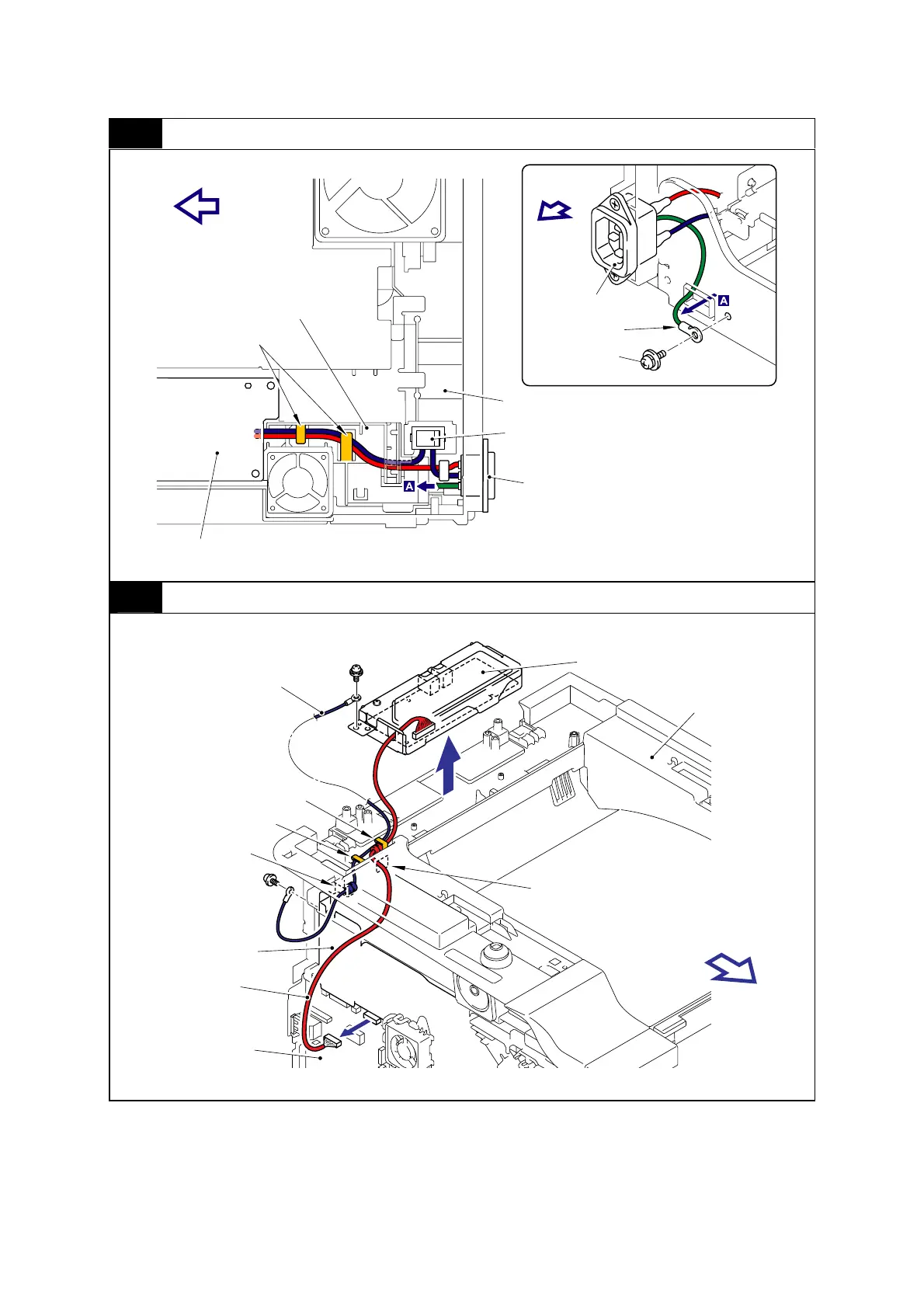

9 PS PCB unit
10 NCU unit (MFC-9840CDW only)
Harness holder 16AWG
Hooks
Frame R
PS PCB unit
Power Inlet socket
Power supply switch
Power Inlet socket
Ground terminal
Screw pan
(S/P washer)
M4x8
Joint cover ASSY
NCU unit
Hook
Hole
Front
Back
Front
NCU harness ASSY
Main PCB ASSY
Hole
Hook
FG harness NCU
Develop gear
plate
ASSY
