(4) Remove the Toner filter frame ASSY from the Paper eject ASSY DX.

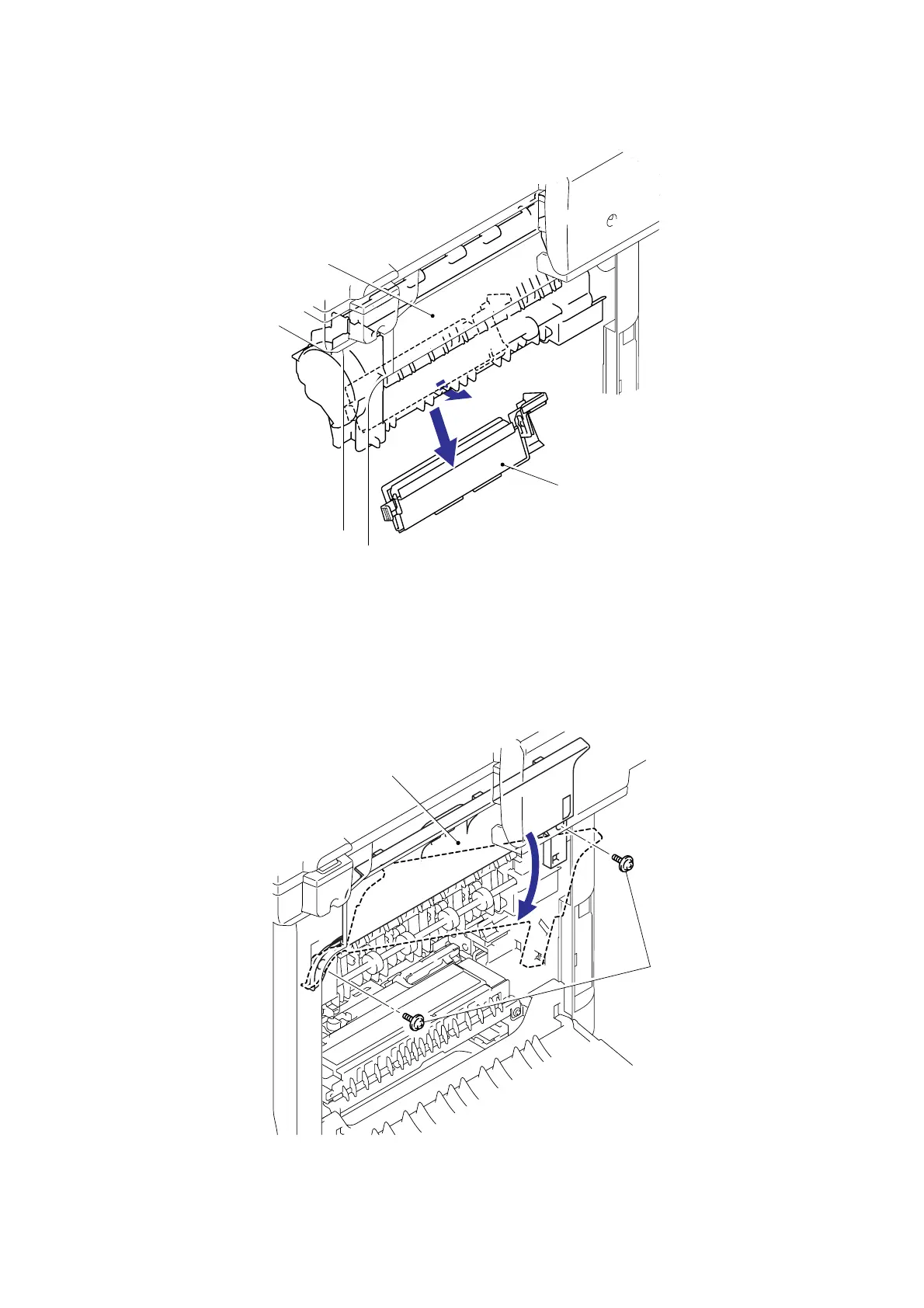

Fig. 3-20
8.6 Back Cover Upper
(1) Remove the two cup S M3x8 Taptite screws, and then remove the Back cover upper.
Note:
Be careful not to break the plastic. As this can be difficult to remove and reassemble.
Fig. 3-21
Back cover upper
Taptite, cup S M3x8
<Back side>
Toner filter frame ASSY
Paper eject ASSY DX
4a
4b
