Brother MFC-9840CDW - Speaker ASSY

Confidential
3-127
(17) Release the Hooks to remove the Paper stopper guide from the Paper chute.

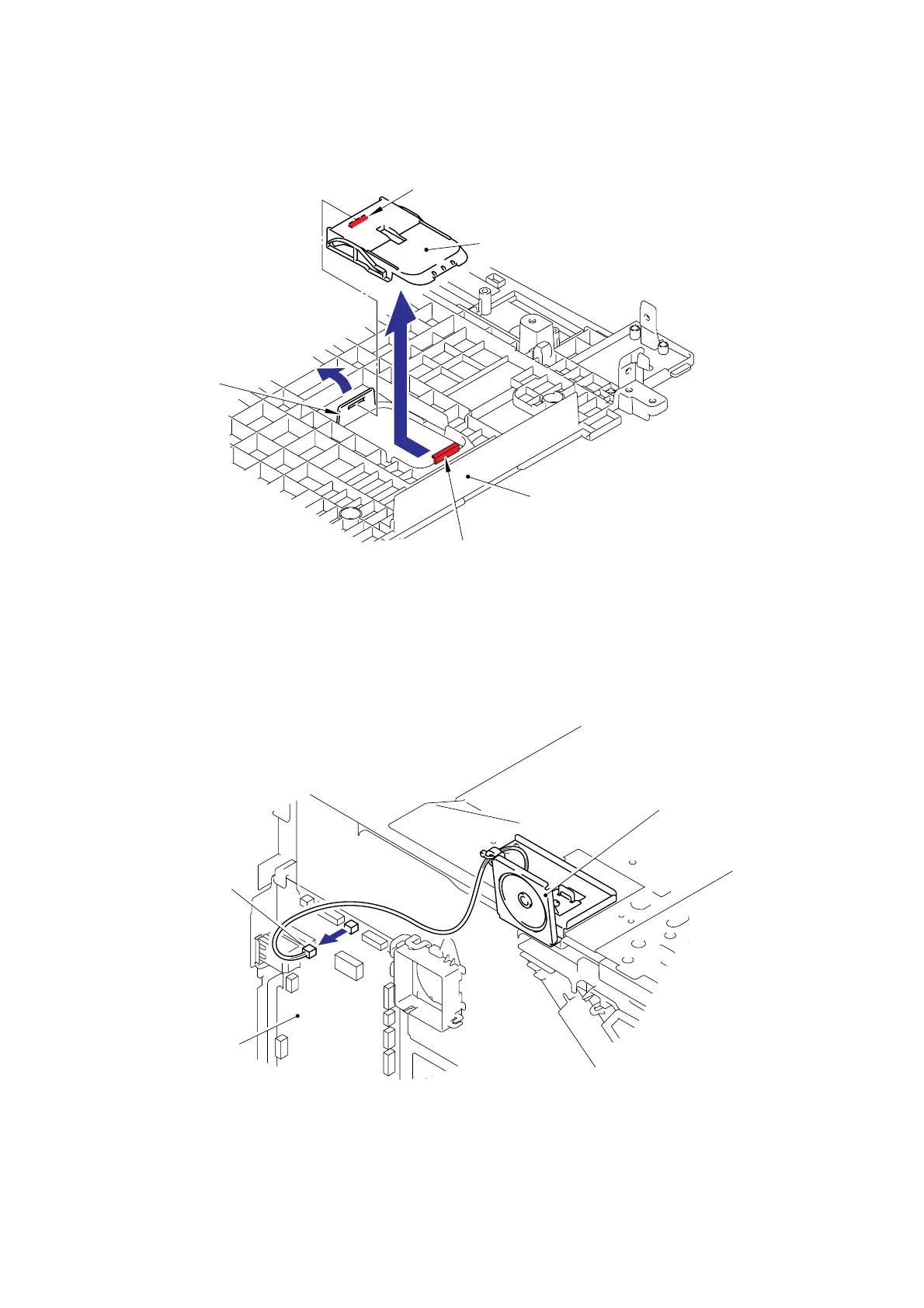

Fig. 3-167
8.25 Speaker ASSY
(1) Disconnect the connector (CN10) from the Main PCB ASSY.
Fig. 3-168
Speaker ASSY
Main PCB ASSY
CN10
<Bottom>
Paper chute
Paper stopper guide
Hook
17a
17b
Hook
Hook
<Left side>
