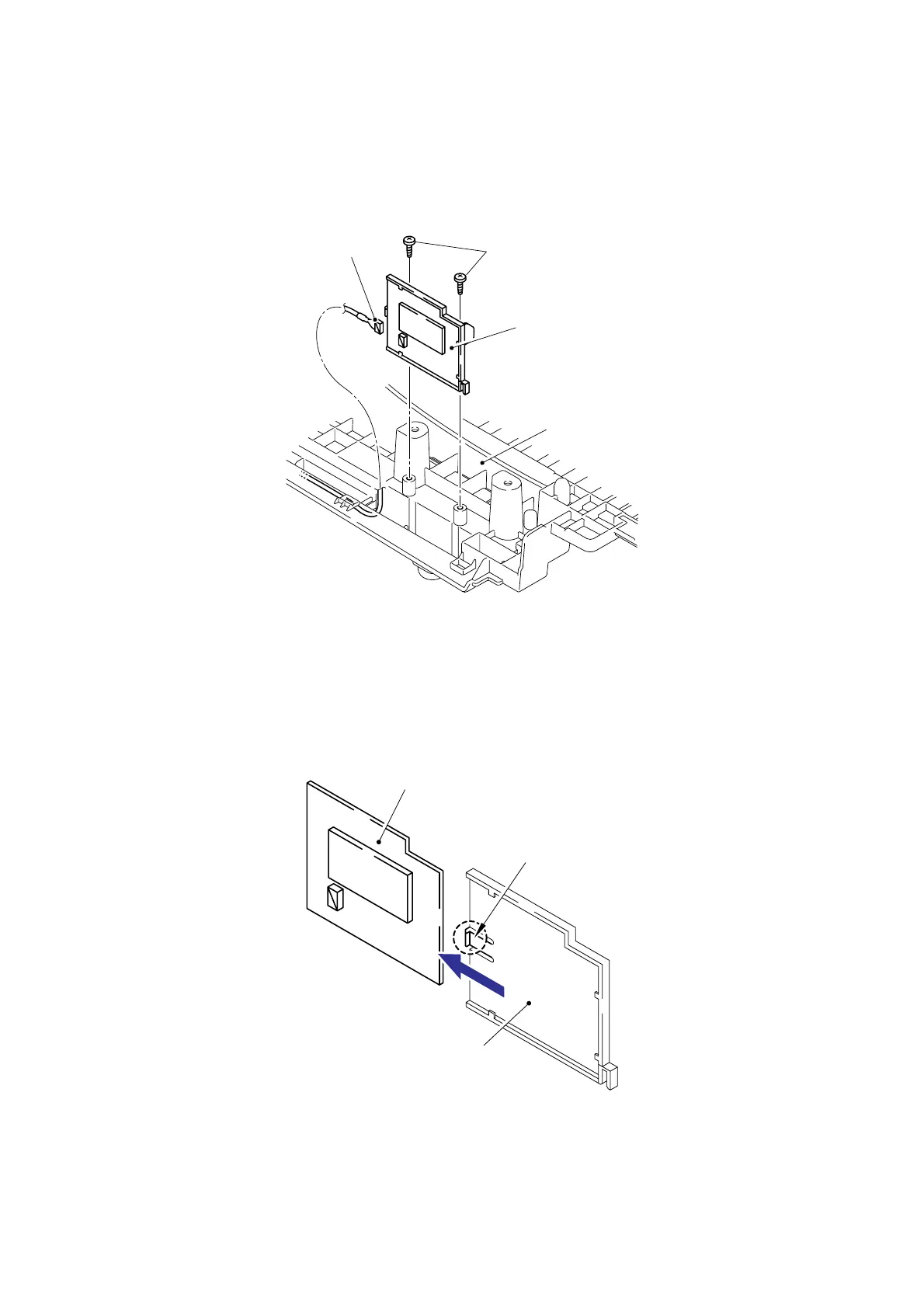

(14) Remove the two bind B M4x12 Taptite screws, and then remove the Wireless LAN PCB
ASSY from the Joint cover ASSY. (MFC-9840CDW only)
(15) Disconnect the connector from the Wireless LAN PCB ASSY. (MFC-9840CDW only)
Fig. 3-165
(16) Release the Hook to remove the Wireless LAN PCB ASSY from the Wireless LAN PCB
holder. (MFC-9840CDW only)
Fig. 3-166
Wireless LAN PCB ASSY
Taptite, bind B M4x12
Connector
Joint cover ASSY
Wireless LAN PCB ASSY
Wireless LAN PCB holder
Hook
<Bottom>
