Brother MFC-9840CDW - Page 258

Confidential
3-125

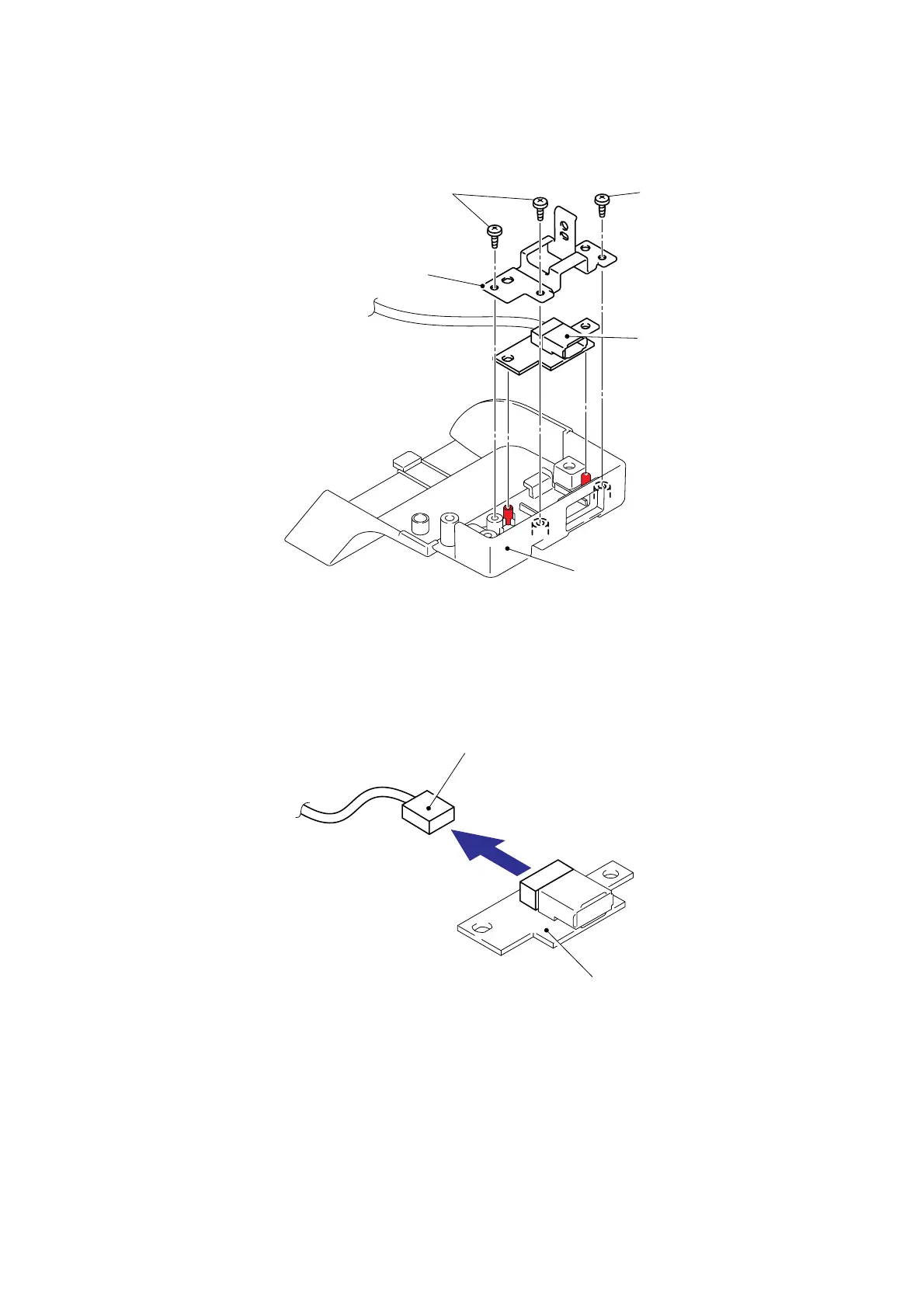

(12) Remove the three bind B M3x8 Taptite screws, and then remove the USB holder and USB
host relay PCB ASSY.
Fig. 3-163
(13) Disconnect the Main USB host harness ASSY from the USB host relay PCB ASSY.
Fig. 3-164
USB holder
Taptite, bind B M3x8
Taptite, bind B M3x8
USB host relay PCB ASSY
Joint cover FL
Main USB host harness ASSY
USB host relay PCB ASSY
<Bottom>
