Brother MFC-9840CDW - Page 257

Confidential
3-124

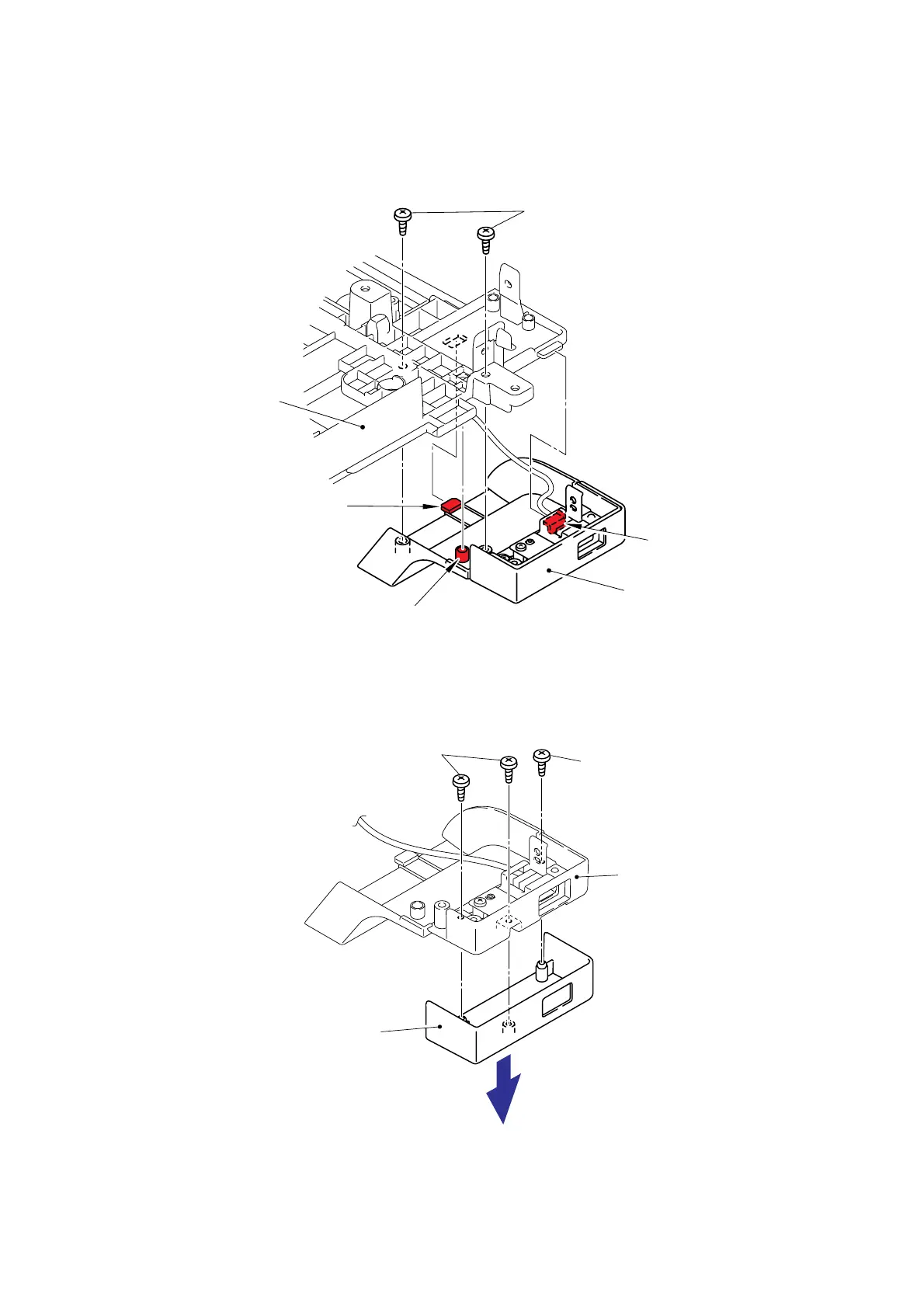

(9) Remove the two bind B M4x12 Taptite screws.
(10) Release the two Hooks and one boss to remove the Joint cover FL from the Joint cover
ASSY.
Fig. 3-161
(11) Remove the three bind B M3x8 Taptite screws, and then remove the Top cover USB front
ASSY.
Fig. 3-162
Taptite, bind B M4x12
Joint cover ASSY
Joint cover FL
Boss
Hook
Hook
Taptite, bind B M3x8
Joint cover FL
Top cover USB front ASSY
Taptite, bind B M3x8
Hook
<Bottom>
<Bottom>
