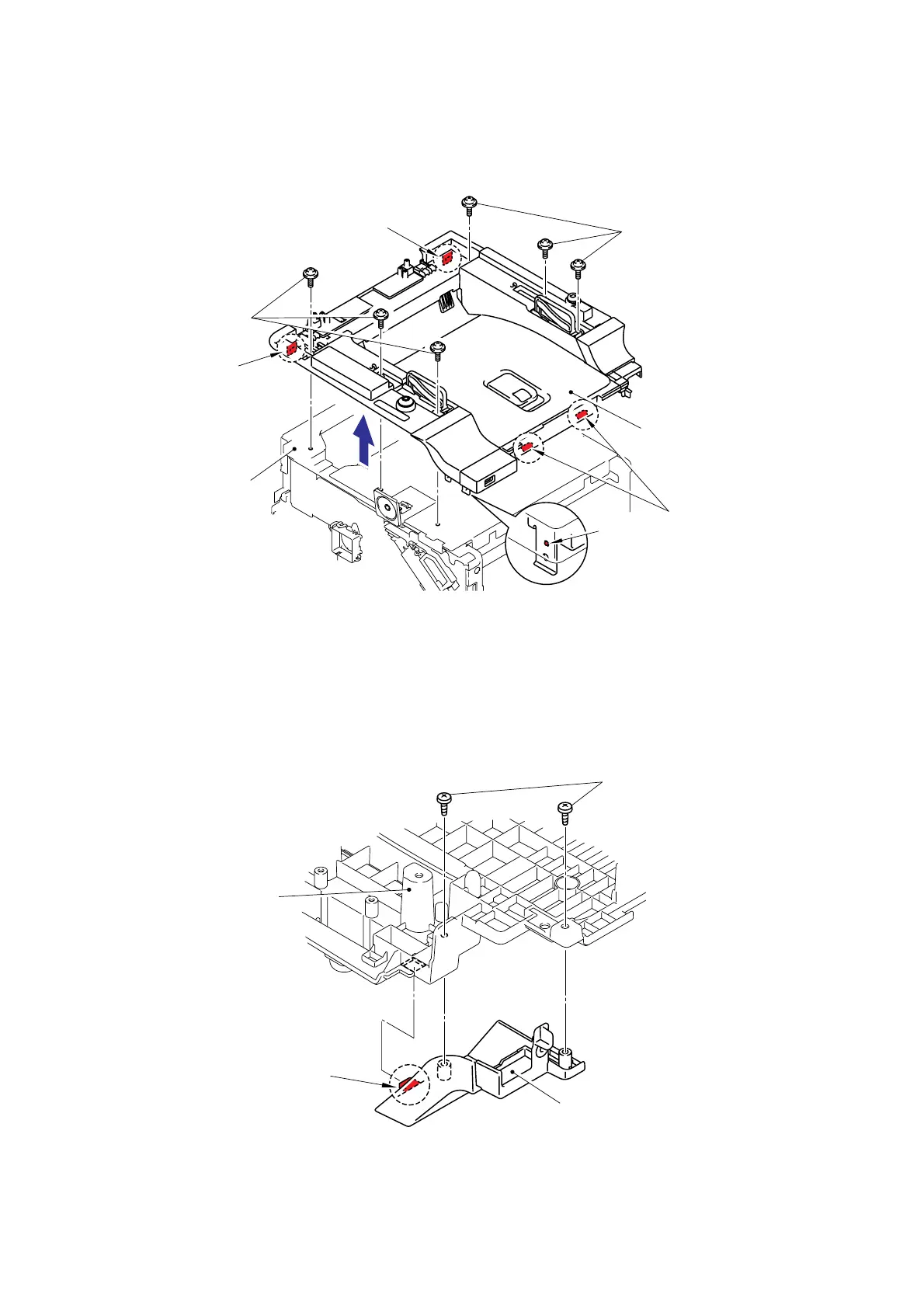

(6) Remove the six cup S M4x8 Taptite screws from the top of the Joint cover ASSY, and
then release the four Hooks and one Pin to remove the Joint cover ASSY from the Frame
unit.
Fig. 3-159
(7) Turn the Joint cover ASSY up side down.
(8) Remove the two bind B M4x12 Taptite screws, and then remove the Joint cover FR from
the Joint cover ASSY.
Fig. 3-160
Taptite, cup S M4x8
Taptite, cup S M4x8
Joint cover ASSY
Taptite, bind B M4x12
Joint cover FR
Hook
Joint cover ASSY
Pin
<Bottom>
Frame unit
Hooks
Hook
Hook
<Front>
