Brother MFC-9840CDW - Fuser Unit; Toner Filter Frame ASSY

Confidential
3-43
8.5 Fuser Unit/ Toner Filter Frame ASSY

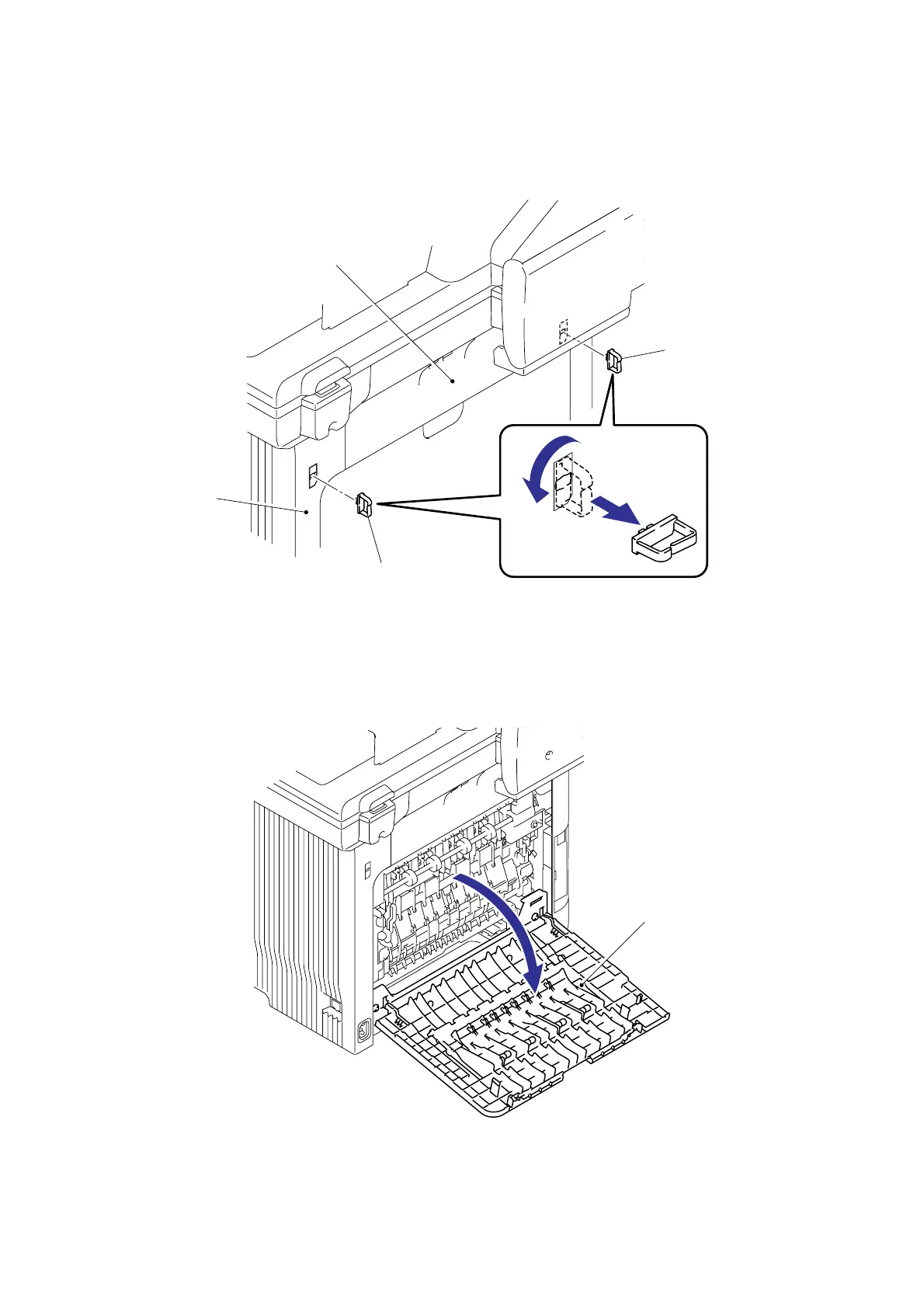

(1) Turn each of the two Cord holders at the angle of 90 degrees and remove them from the
Back cover upper and Side cover R ASSY.
Fig. 3-16
(2) Open the Back cover.
Fig. 3-17
<Back side>
Back cover
<Back side>
Back cover upper
Cord holder
1a
1b
Side cover R ASSY
Cord holder
