Brother MFC-9840CDW - Overview of Gears

Confidential
3-15

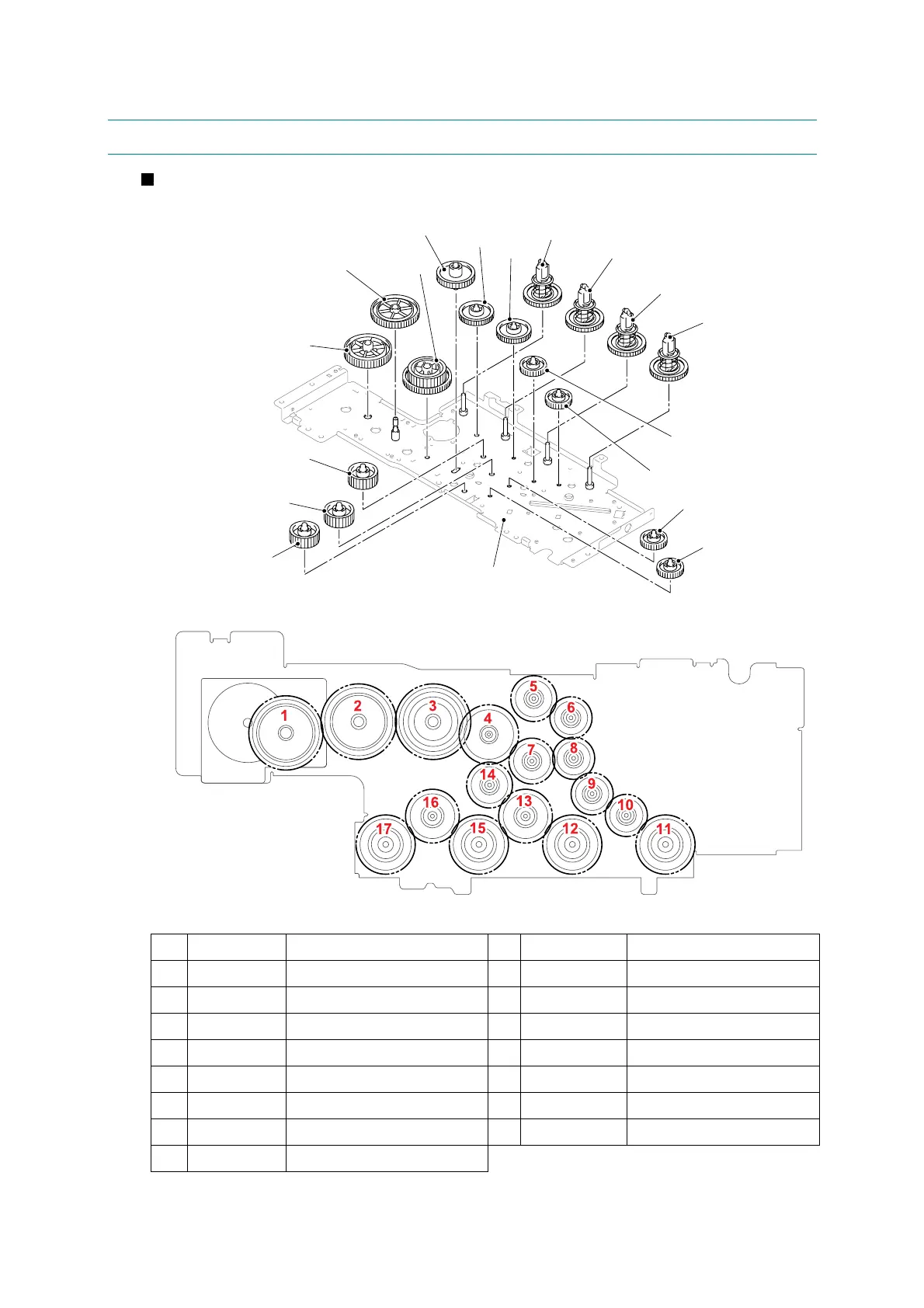

5. OVERVIEW OF GEARS
DEVELOPER DRIVE
<Development view>
1
2
3
4
5
6
7
8
9
10
11
12
14
15
16
17
13
<Layout view>
<Name of Gears>
1 LR0194001 Gear 98 10 LR0199001
Gear 35
2 LR0202001 Gear 100 11 LR0203001 Coupling gear 50
3 LR0201001
Gear 50/100
12 LR0203001 Coupling gear 50
4 LR0197001
Pendulum gear 50
13 LR0200001
Gear 45
5 LR0198001
Gear 38
14 LR0198001
Gear 38
6 LR0199001
Gear 35
15 LR0203001
Coupling gear 50
7 LR0198001
Gear 38
16 LR0200001
Gear 45
8 LR0199001
Gear 35
17 LR0203001
Coupling gear 50
9 LR0199001
Gear 35
* These parts are subject to change without notice.
Develop drive motor ASSY
