Brother MFC-9840CDW - Page 149

Confidential
3-16

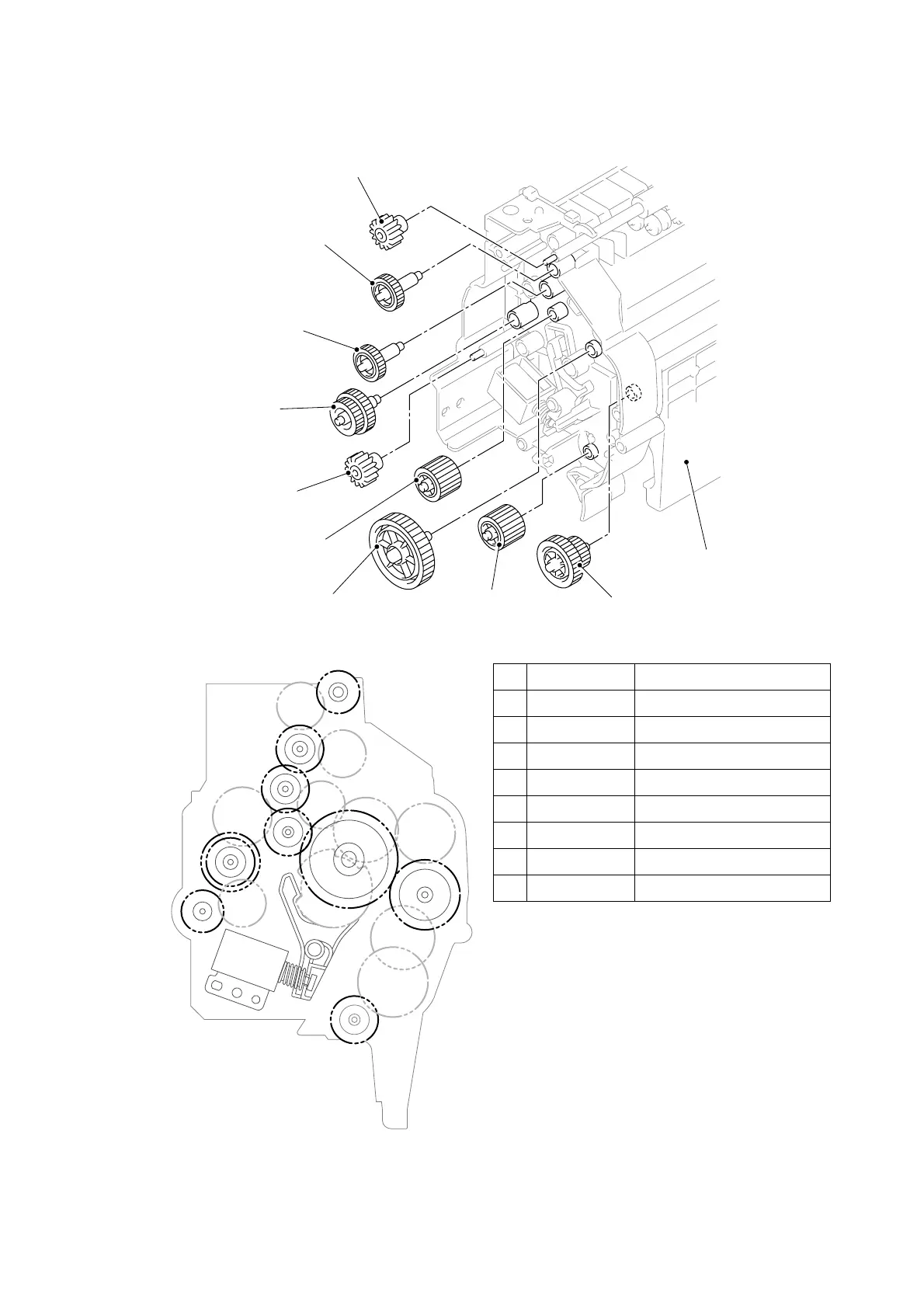

PAPER EJECT (1/2)
<Development view>
18
19
20
21
22
23
24
25
26
<Layout view>
18 LR0482001 Eject roller gear
19 LJ7365001 Idle gear 16B
20 LJ7365001 Idle gear 16B
21 LM5016001 Ejector gear 16
22 LR0480001 Ejector gear 16/20
23 LR0482001 Eject roller gear
24 LR1181001 Ejector gear 36 SX
25 LR0478001 Ejector gear 14/24
26 LM5016001 Ejector gear 16
18
20
21
23
26
27
32
30
3526
18
19
20
21
22
23
25
24
* These parts are subject to change without notice.
Paper eject ASSY DX
<Left side>
<Name of Gears>
