Brother MFC-9840CDW - Page 150

Confidential
3-17

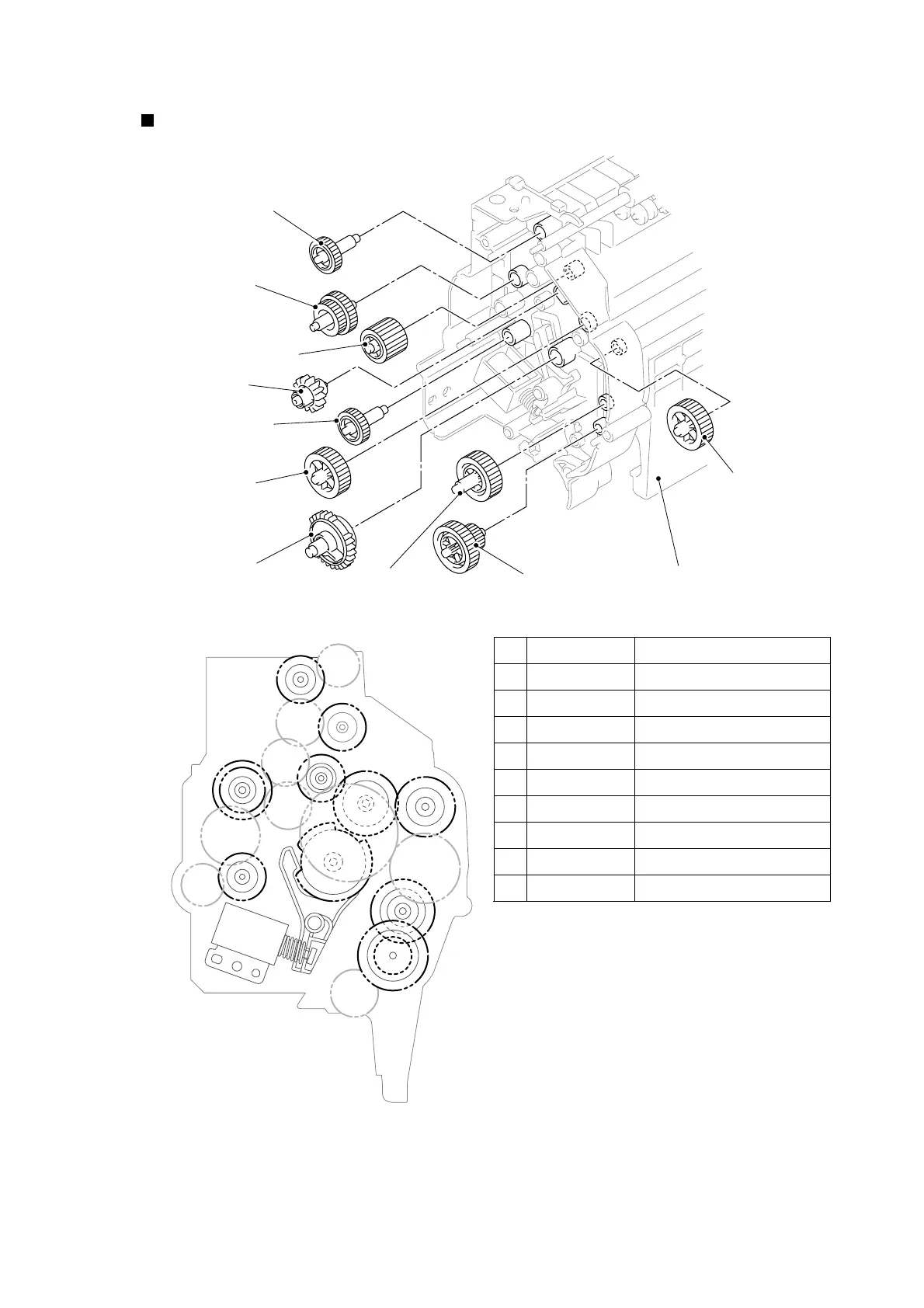

PAPER EJECT (2/2)
<Development view>
27
28
29
32
30
31
33
35
34
36
<Layout view>
27 LJ7365001 Idle gear 16B
28 LR0479001 Ejector gear 15/20
29 LM5016001 Ejector gear 16
30 LM5018001 Ejector gear 16 planetary
31 LM5019001 Ejector gear 22
32 LJ7365001 Idle gear 16B
33 LR0979001 Ejector gear 28 sector
34 LM5019001 Ejector gear 22
35 LR0476001 Ejector gear 22B
36 LR0477001 Ejector gear 12/24
3629
19
22
24
25
28
29
33
34
27
28
30
31
32
33
35
36
3134
* These parts are subject to change without notice.
Paper eject ASSY DX
<Left side>
<Name of Gears>
