Brother MFC-9840CDW - ADF Unit

Confidential
3-68
8.19 ADF Unit

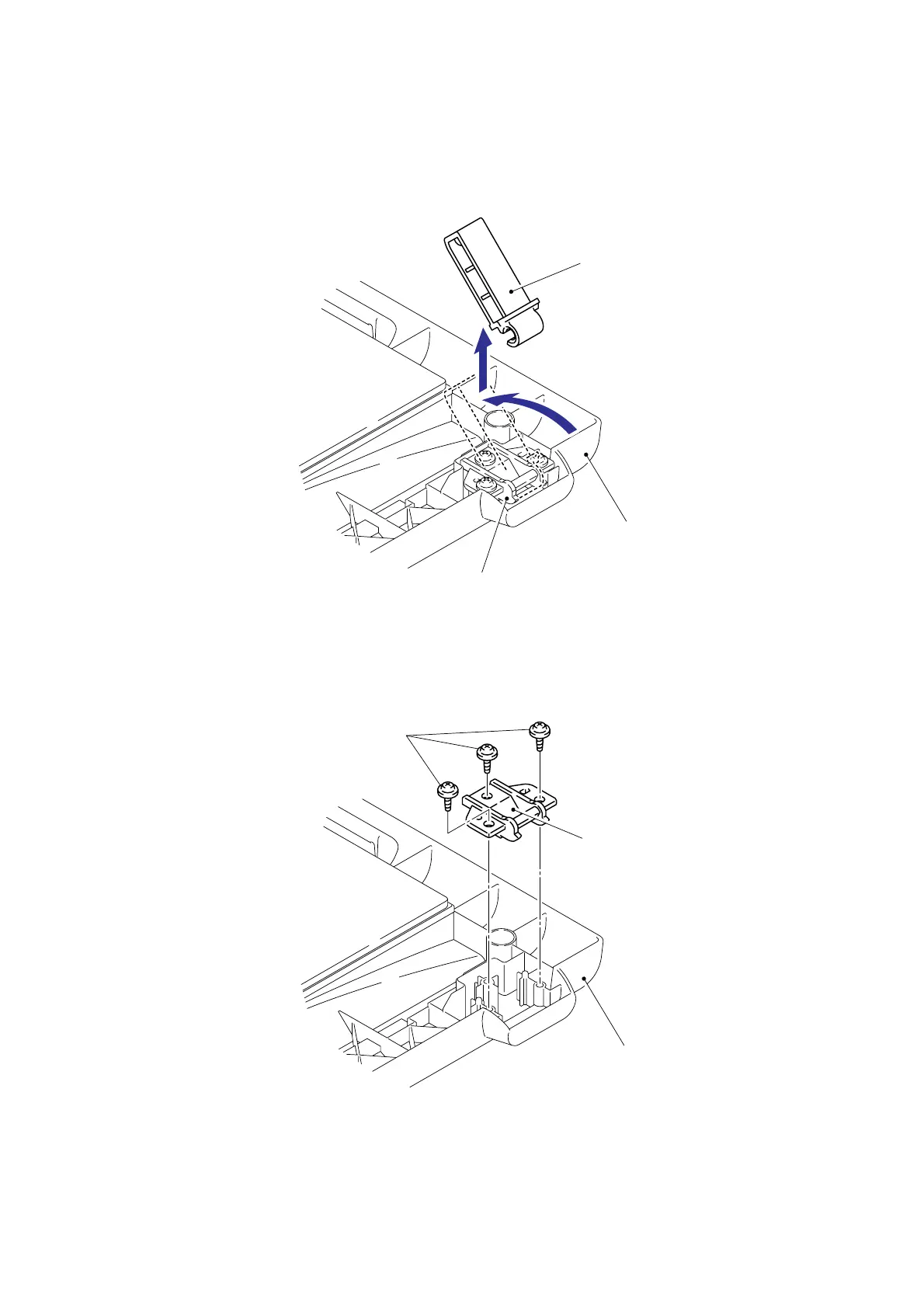

(1) Turn the ADF unit upside down.
(2) Remove the Hinge arm R from the Hinge base R.
Fig. 3-60
(3) Remove the three cup B M3x10 Taptite screws, and then remove Hinge base R.
Fig. 3-61
Taptite, cup B M3x10
Hinge base R
A
DF unit
<Bottom>
Hinge arm R
Hinge base R
A
DF unit
<Bottom>
2a
2b
