(8) Remove the two bind B M4x12 Taptite screws, and then remove the ADF unit from the
Document scanner unit.

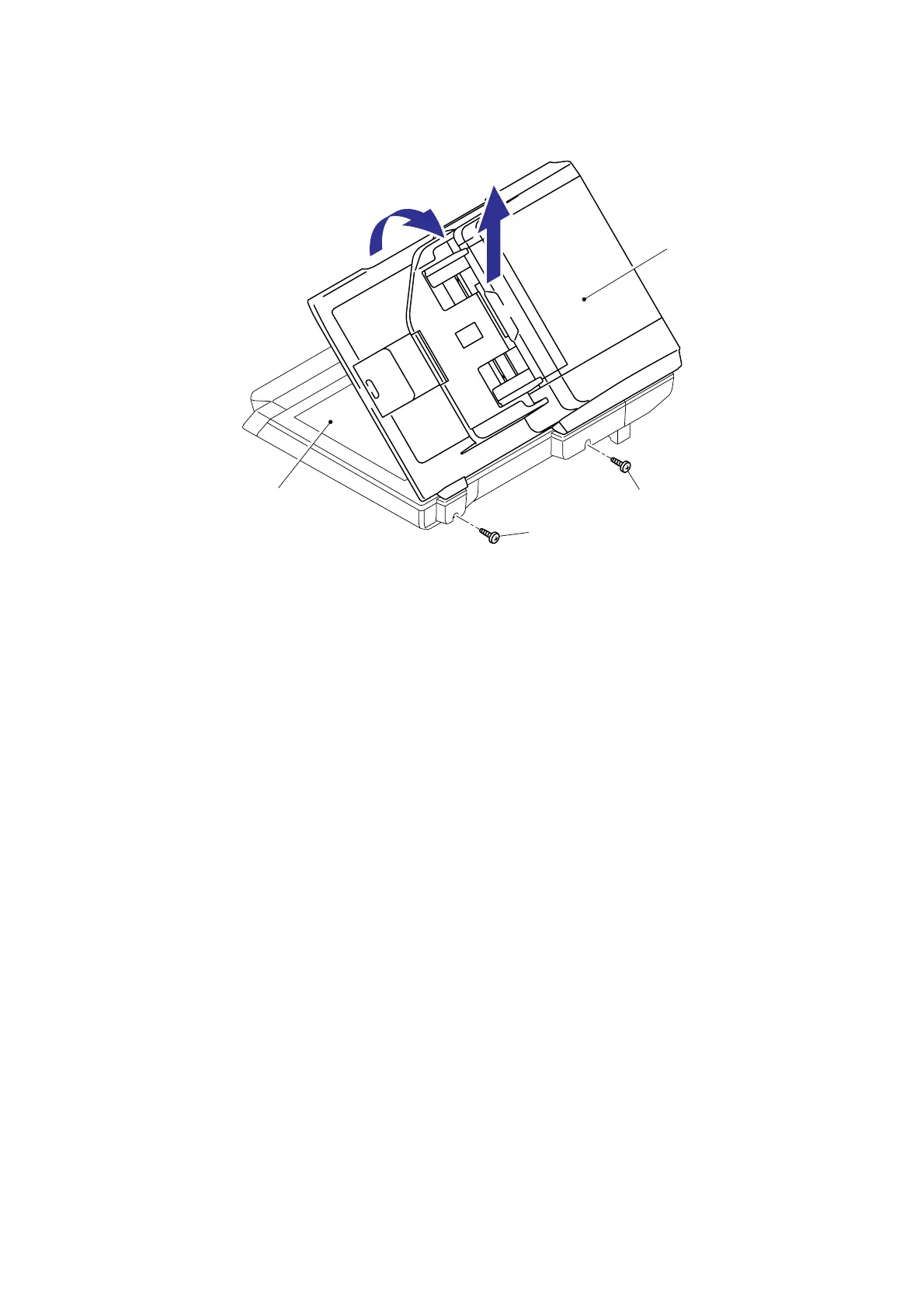

Fig. 3-59
A
DF unit
Document scanner unit
Taptite, bind B M4x12
Taptite, bind B M4x12
8a
8b
