Brother MFC-9840CDW - Page 199

Confidential
3-66

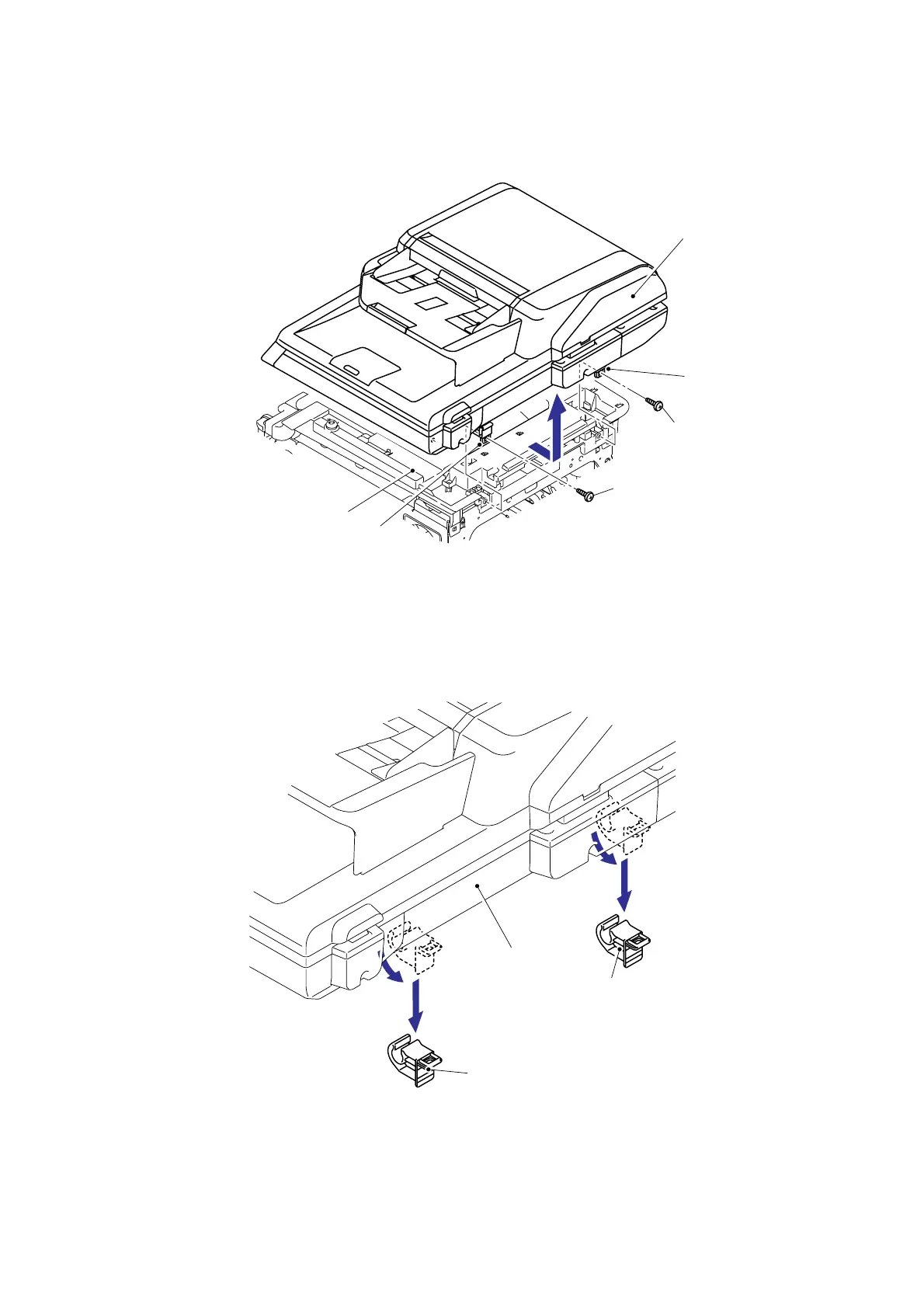

(6) Remove the two bind B M4x12 Taptite screws, and then remove the Document scanner
unit ASSY from the Joint cover ASSY by lifting upwards.
Fig. 3-57
(7) Remove the two Hinges from the Document scanner unit ASSY.
Fig. 3-58
Joint cover ASSY
Document scanner unit ASSY
<Back side>
Document scanner
unit ASSY
Taptite, bind B M4X12
Taptite, bind B M4X12
Hinge
Hinge
<Back side>
Hinge
Hinge
