(4) Open the Document scanner unit ASSY, and then release the Hooks of the Pull arms L
and R from the joint of the Document scanner unit ASSY.

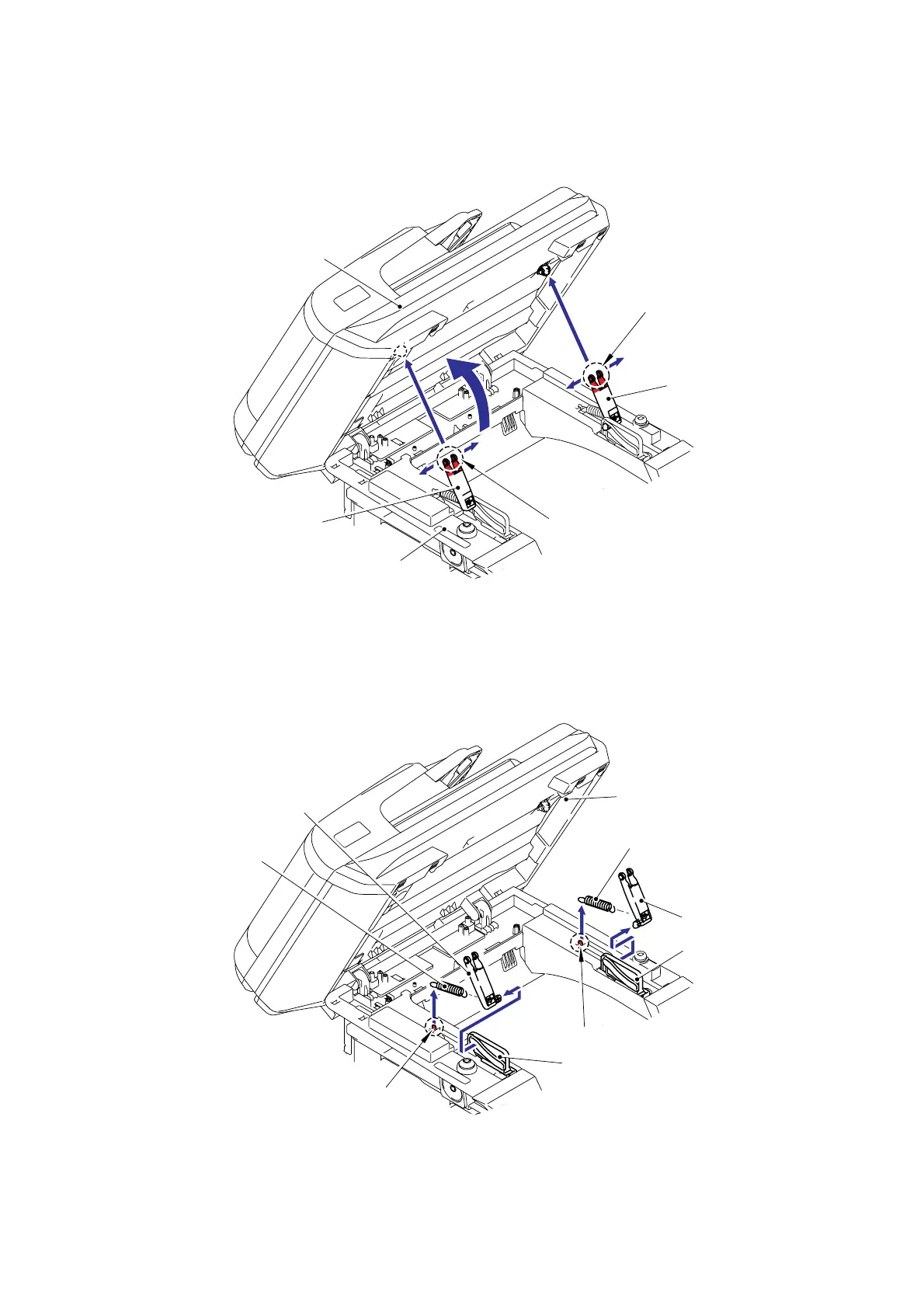

Fig. 3-55
(5) Remove the Left and Right Pull arms and Pull arm springs from the Pull arm guide.
Fig. 3-56
Pull arm R
Document scanner unit ASSY
Pull arm L
Joint cover ASSY
Pull arm R
Pull arm L
Document scanner unit ASSY
Pull arm spring L
Pull arm spring R
Hook
Hook
Pull arm guide
Pull arm guide
Hook
Hook
