Brother MFC-9840CDW - Page 202

Confidential
3-69

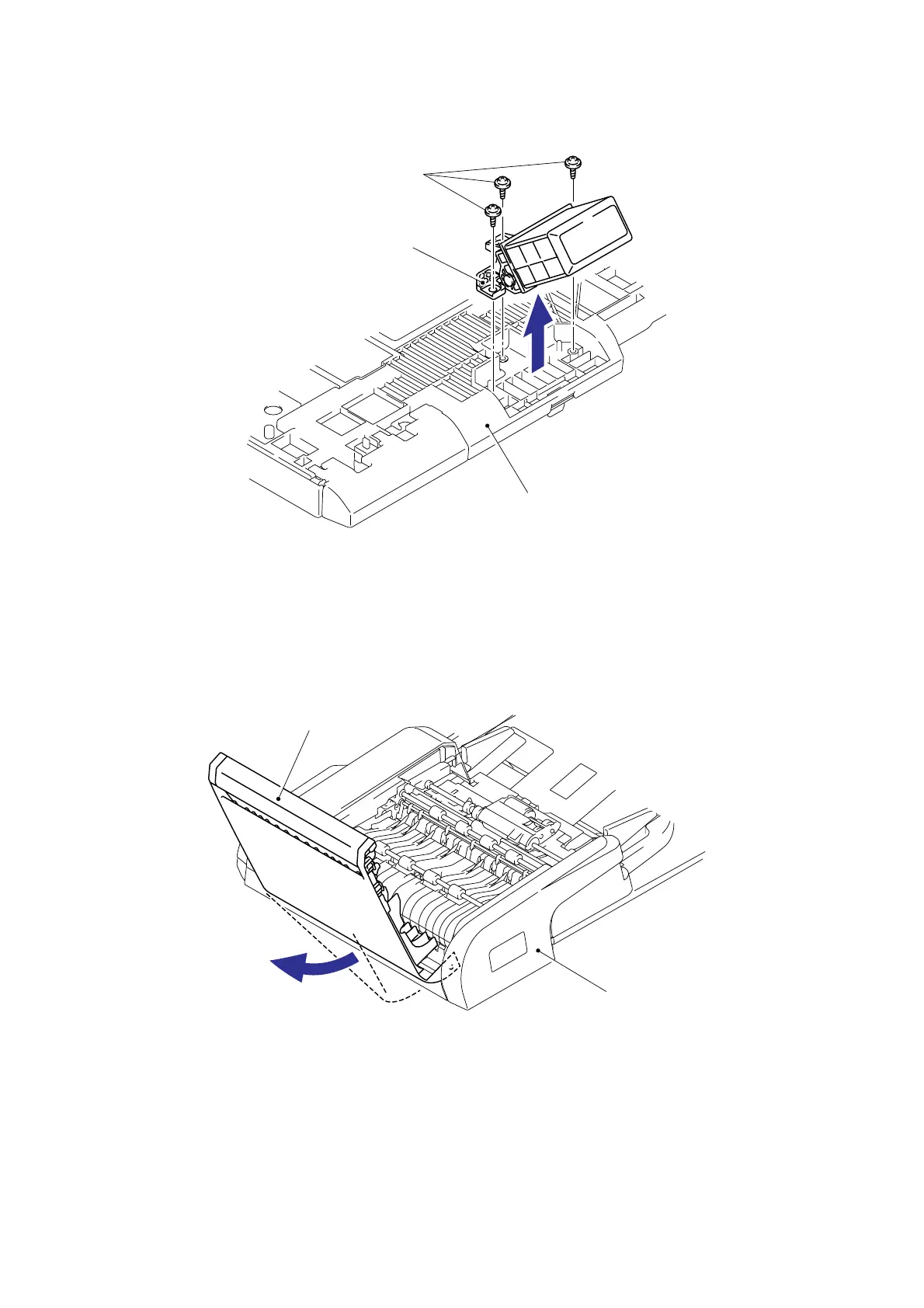

(4) Remove the three cup B M3x10 Taptite screws, and then remove the Hinge ASSY L.
Fig. 3-62
(5) Place the ADF unit the correct way up, and then remove the ADF cover ASSY from the
ADF unit.
Fig. 3-63
Taptite, cup B M3x10
Hinge ASSY L
A
DF unit
<Bottom>
A
DF cover ASS
Y
A
DF unit
