3-70

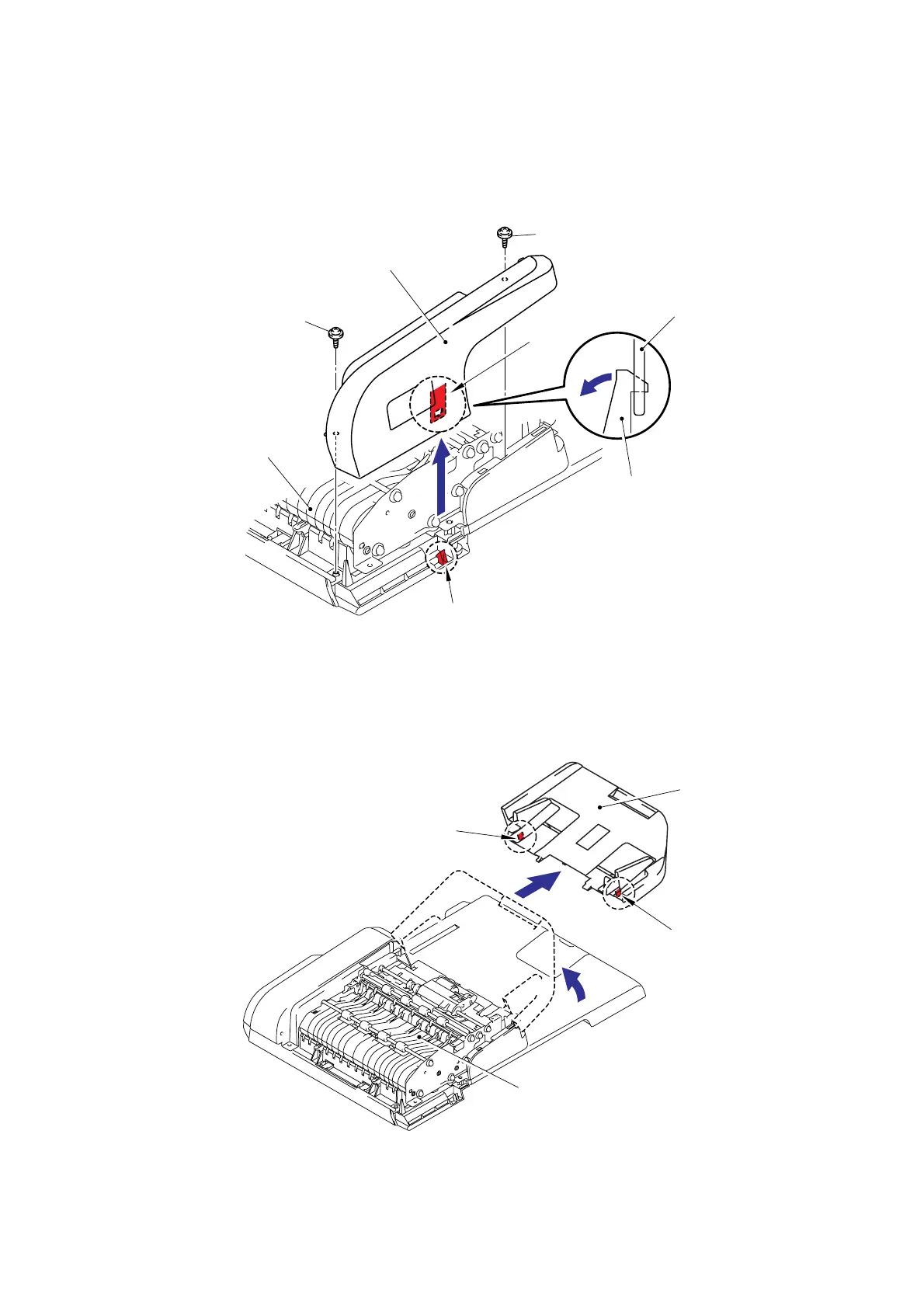

(6) Remove the cup S M3x8 SR Taptite screw and cup B M3x10 Taptite screw from the ADF
front cover 1.
(7) Release the Hook from the bottom of the ADF unit and remove the ADF front cover 1 from
the ADF unit.
Fig. 3-64
(8) Lift up the top end of the Document tray ASSY and release the two Hooks. Then, pull it out
of the ADF unit.
Fig. 3-65
A
DF front cover 1
Taptite, cup S M3x8 SR
Taptite, cup B M3x10
Latch
Hook
A
DF unit
Hook
Hook
Document tray ASSY
A
DF unit
8a
8b
<Front>
<Left side>
Hook
Latch
