3-71
(9) Remove the cup B M3x10 Taptite screw from the ADF back cover.
(10) Release the Hook A and Hook B from the bottom of the ADF unit and remove the ADF
back cover.

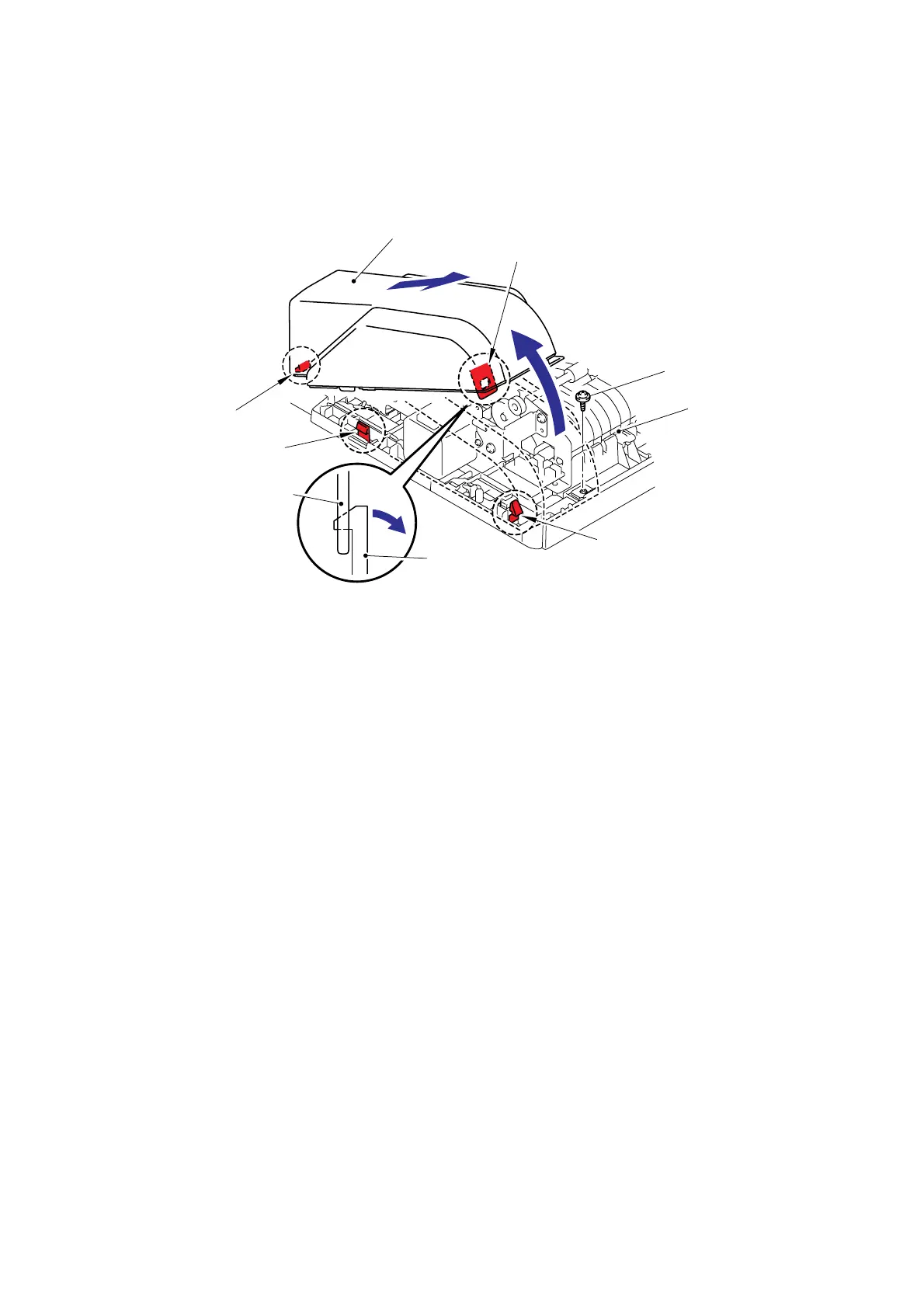

Fig. 3-66
A
DF back cover
A
DF unit
Hook A
Hook
Latch
Taptite, cup B M3x10
10a
10b
<Left side>
<Back side>
Hook B
Hook A
Latch
