(11) Disconnect the seven Connectors (CN1~CN7) from the ADF relay PCB ASSY.
(12) Disconnect the Connector of the ADF motor harness from the ADF motor.
(13) Remove the cup S M3x8 SR Taptite screw, and then remove the FG harness ADF.

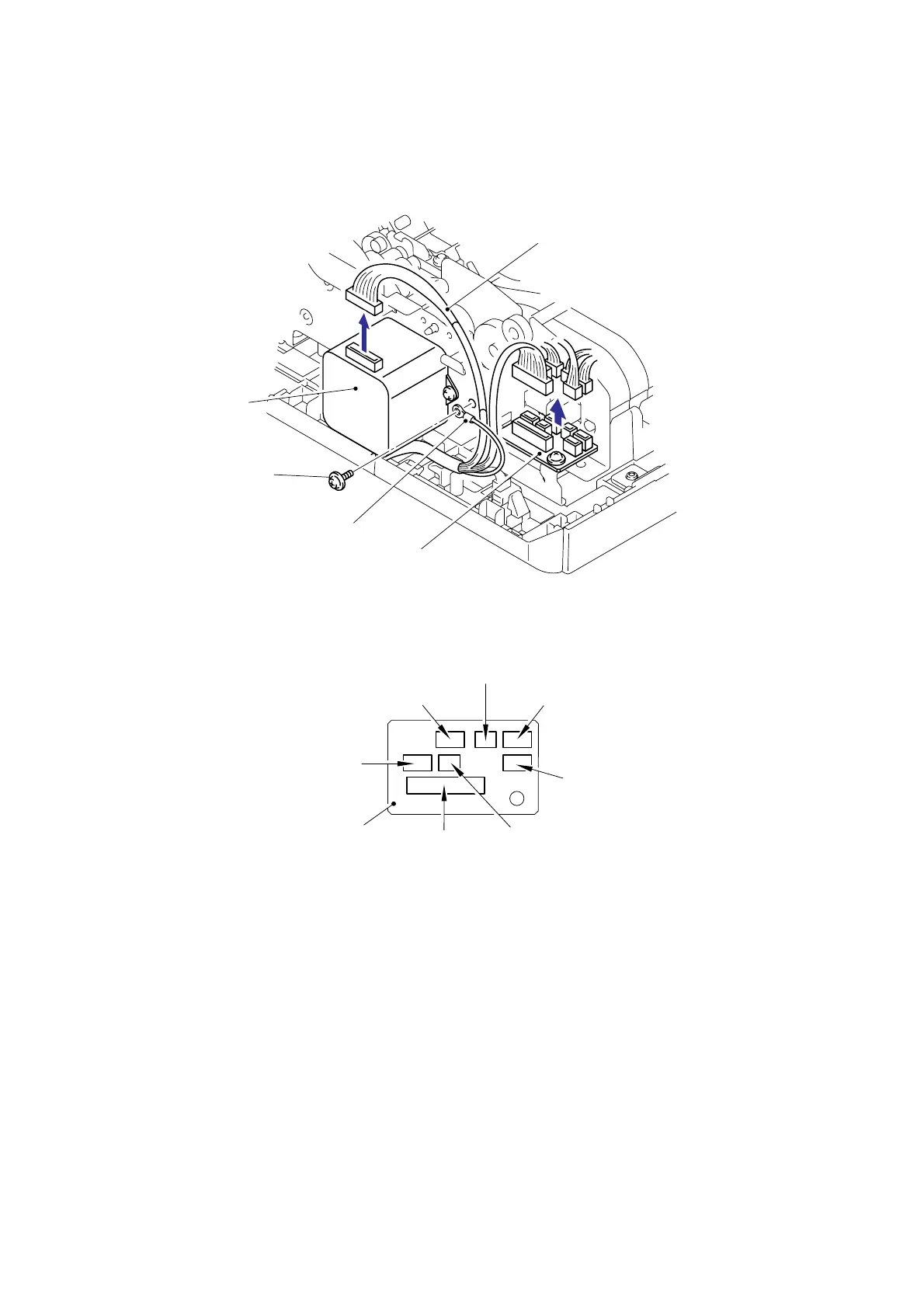

Fig. 3-67
Connector
A
DF moto
r
Taptite, cup S M3x8 SR
FG harness ADF
A
DF relay PCB ASSY
* ADF relay PCB ASSY
A
DF relay PCB ASSY
CN2
CN3
CN4
CN7
CN6
CN1
CN5
