Confidential
3-73

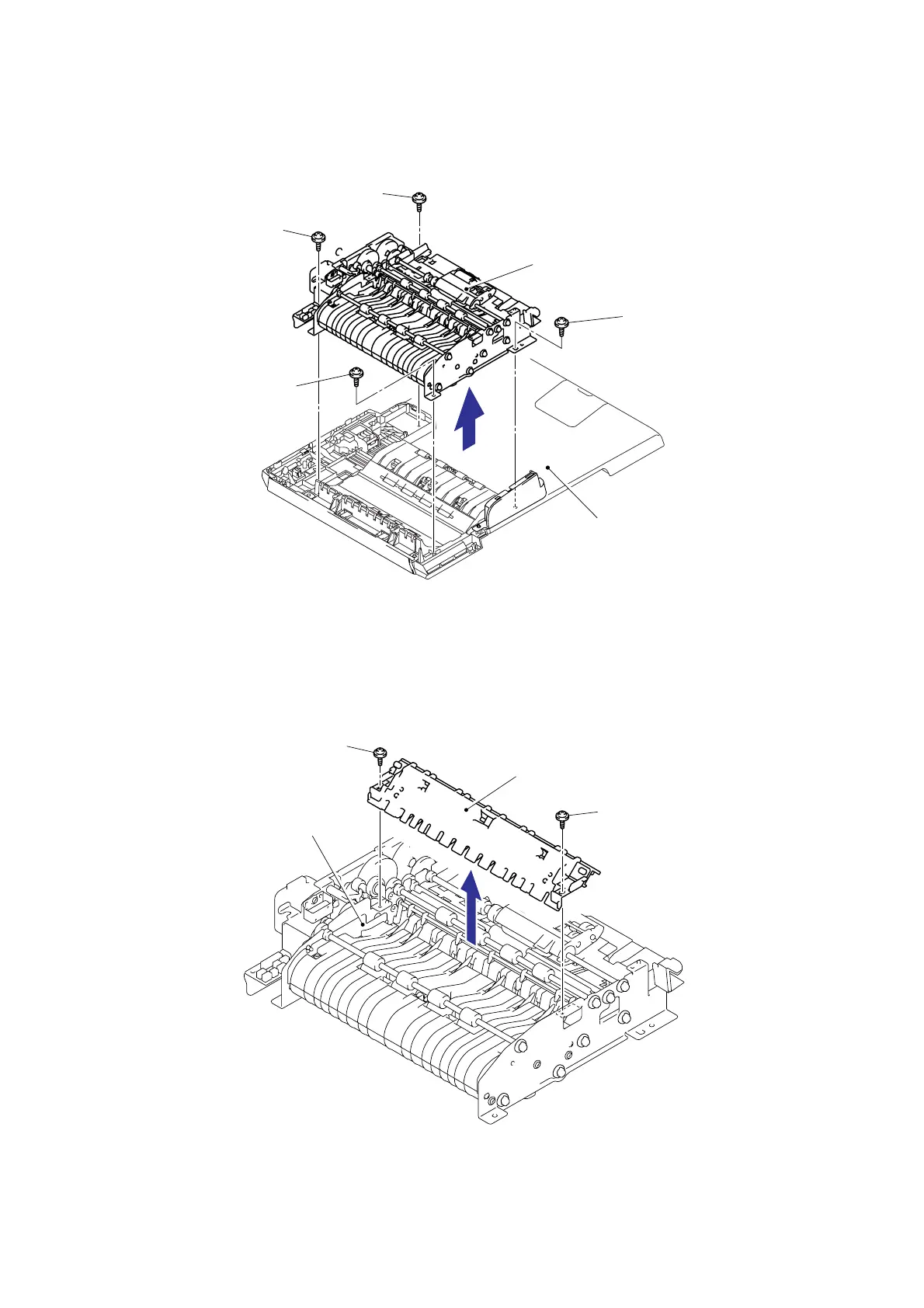

(14) Remove the four cup B M3x10 Taptite screws, and then remove the ADF chute ASSY
from the Document cover sub ASSY.
Fig. 3-68
(15) Remove the two cup S M3x8 SR Taptite screws, and then remove the SB chute ASSY
from the ADF chute ASSY.
Fig. 3-69
SB chute ASSY
Taptite, cup S M3x8 SR
Taptite, cup S M3x8 SR
A
DF chute ASS
Y
Taptite, cup B M3x10
Taptite, cup B M3x10
Taptite, cup B M3x10
Taptite, cup B M3x10
Document cover sub ASSY
A
DF chute ASS
Y
