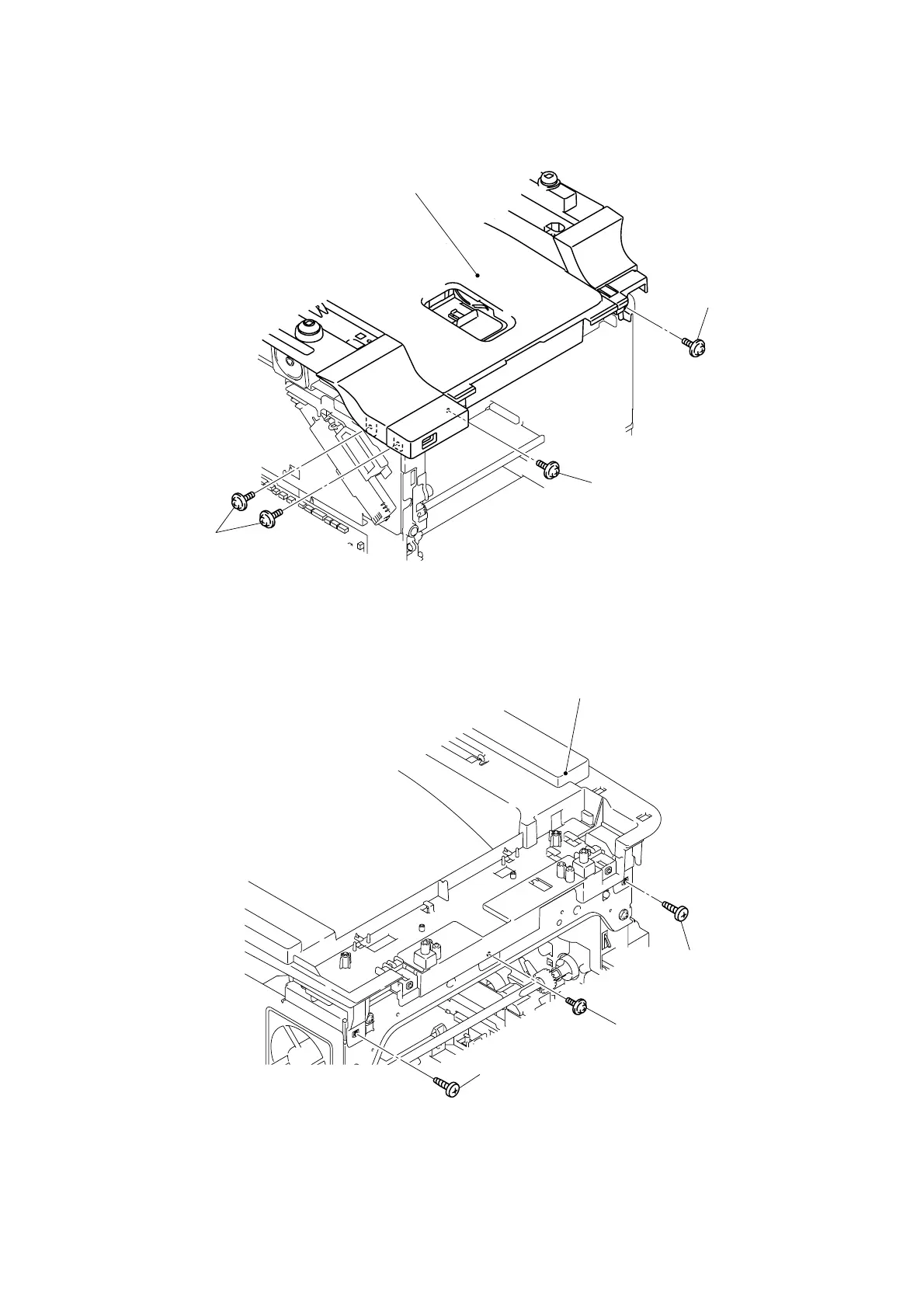

(4) Remove the two cup S M3x8 Taptite screws from the front side of the Joint cover ASSY,
and remove two cup S M3x8 Taptite screws from the left side.
Fig. 3-157
(5) Remove the one cup S M3x8 Taptite screw and two bind B M4x12 Taptite screws from the
back side of the Joint cover ASSY.
Fig. 3-158
Joint cover ASSY
Taptite, cup S M3x8
Taptite, cup S M3x8
<Front>
Taptite, cup S M3x8
<Left side>
<Back side>
Taptite, bind B M4x12
Taptite, cup S M3x8
Taptite, bind B M4x12
Joint cover ASSY
