(2) Remove the cup S M3x6 Taptite screw, and then remove the Speaker holder.

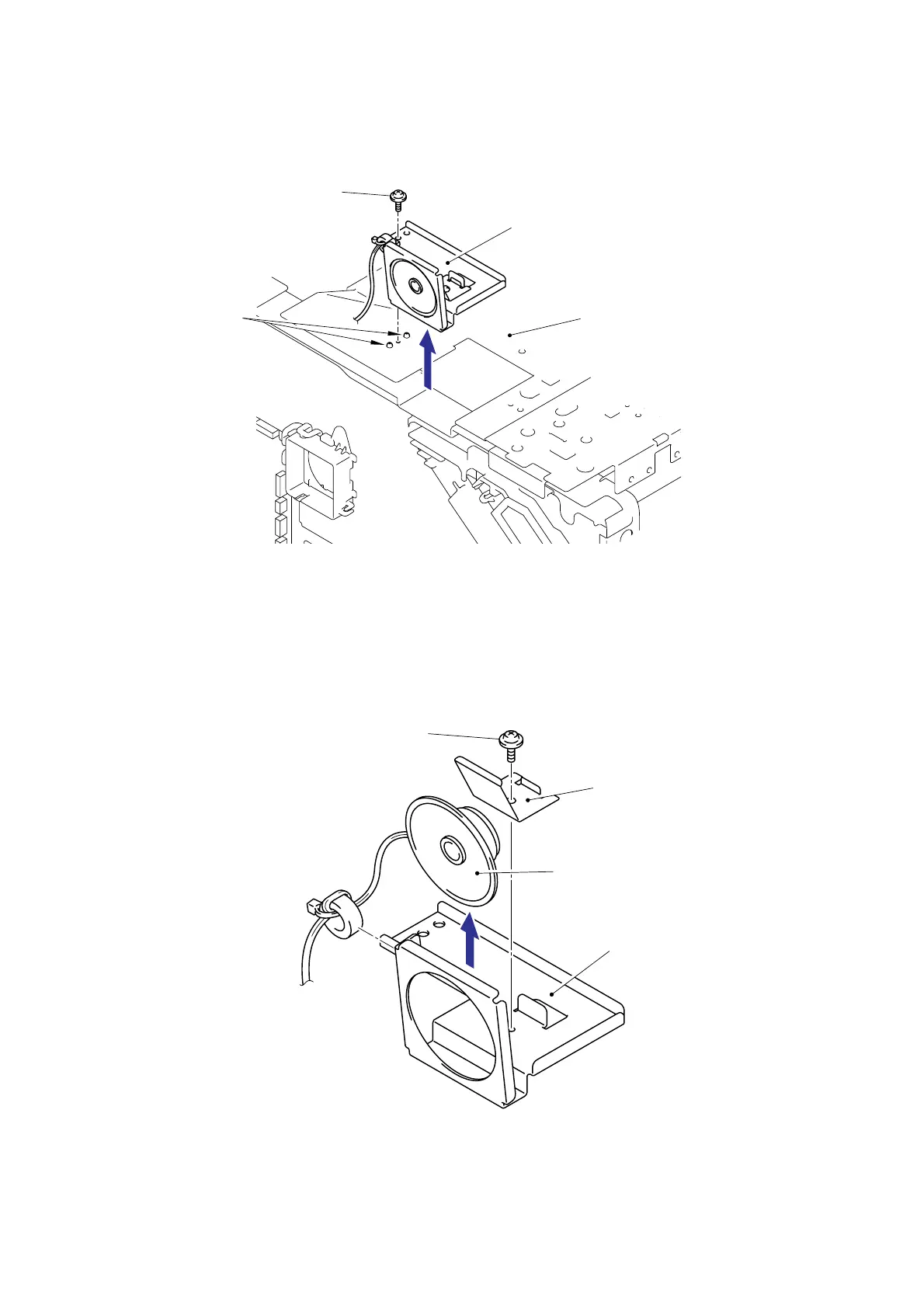

Fig. 3-169
(3) Remove the cup S M3x6 Taptite screw, and then remove the Speaker hold spring.
(4) Remove the Speaker ASSY from the Speaker holder.
Fig. 3-170
Speaker holder
Taptite, cup S M3x6
Bosses
Speaker hold spring
Taptite, cup S M3x6
Speaker ASSY
Speaker holder
Scanner cover
<Left side>
