3-171

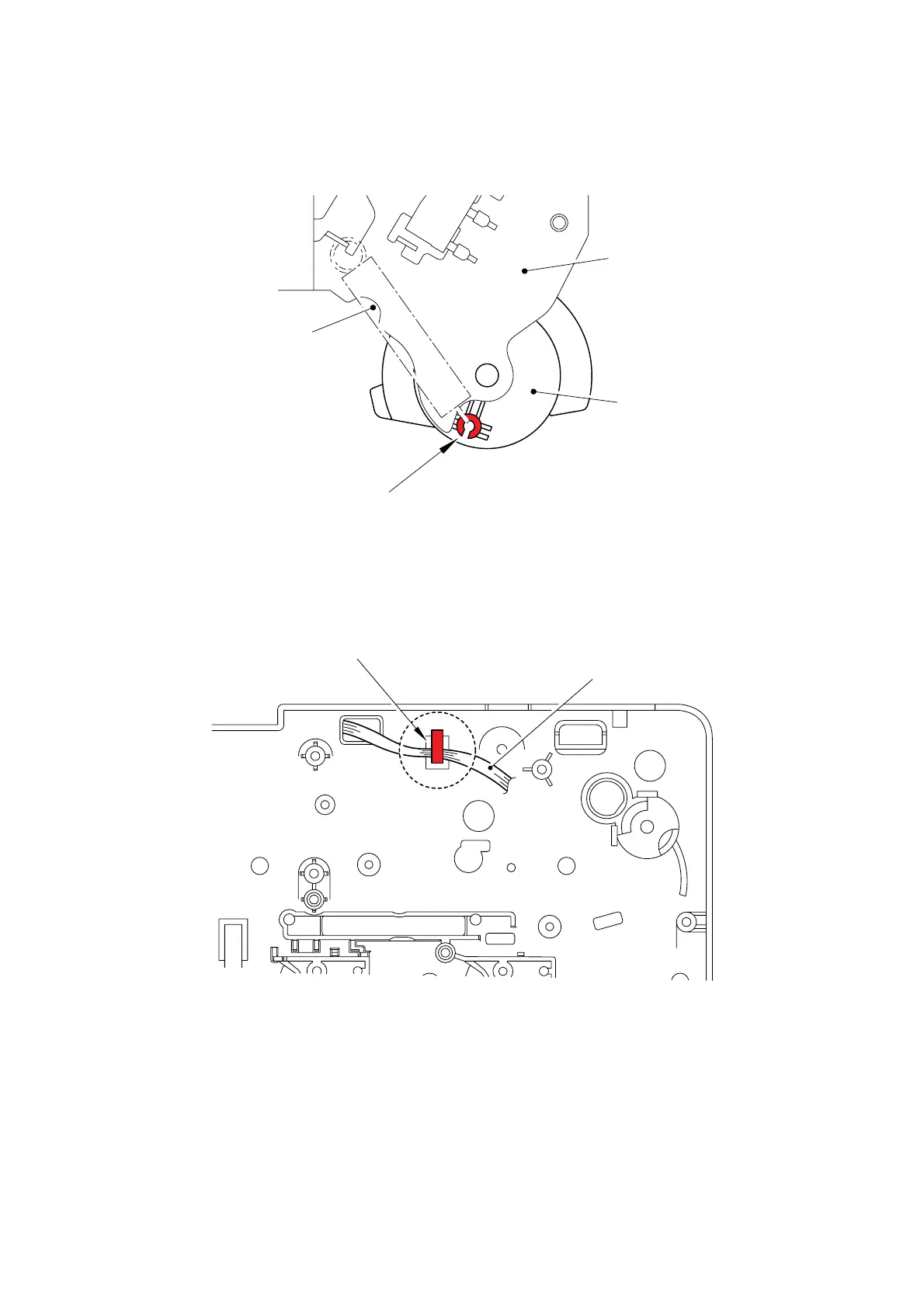

Assembling Note:
- Assemble the Develop press drive L ASSY so that the section of the Pull up lever L, where the
spring is hooked is placed as shown in the figure below.
Fig. 3-249
- Catch the harness from the Laser unit onto the Hook as shown in the figure below, and then
assemble the Develop press drive L ASSY.
Fig. 3-250
Develop press drive L ASSY
Pull up lever L
Pull up lever spring (for L)
Section where the spring is hooked
Hook
Harness from Laser unit
To Next Page
