Confidential
3-144
(5) Remove the Collar 3 from the Hinge shaft R, and then remove the Hinge shaft R from the
Hinge plate R.
(6) Remove the Front door unit ASSY from Frame unit.

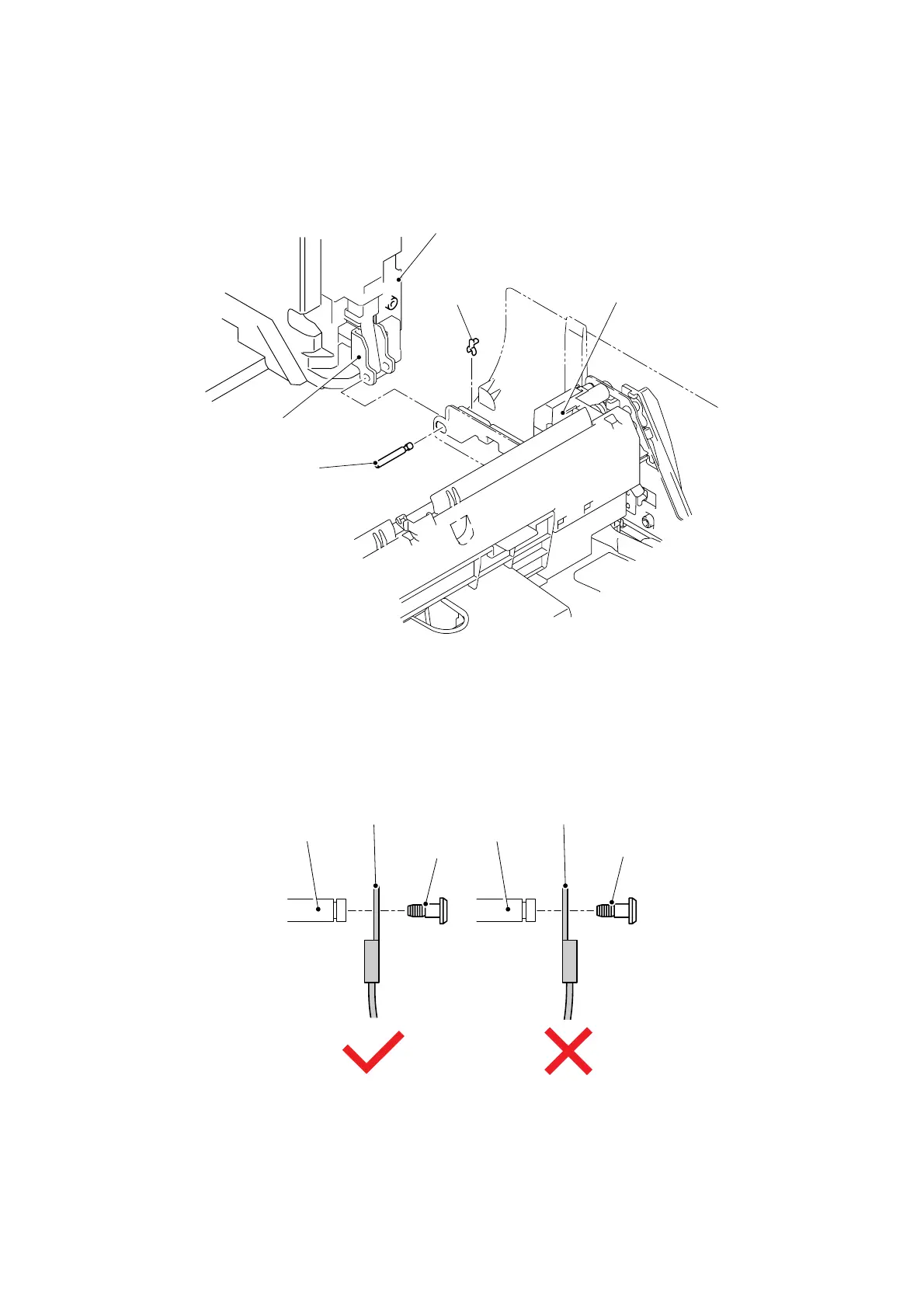

Fig. 3-199
Assembling Note:
- When assembling the Wire rope onto the Shaft on the main body, be careful of the direction of
Wire rope referring to the figure below.
Fig. 3-200
Front door unit ASSY
Collar 3
Hinge shaft R
Frame unit
<Front>
Shoulder screw
Shoulder screw
Shaft
Shaft
Wire rope
Wire rope
Hinge plate R
