3-143

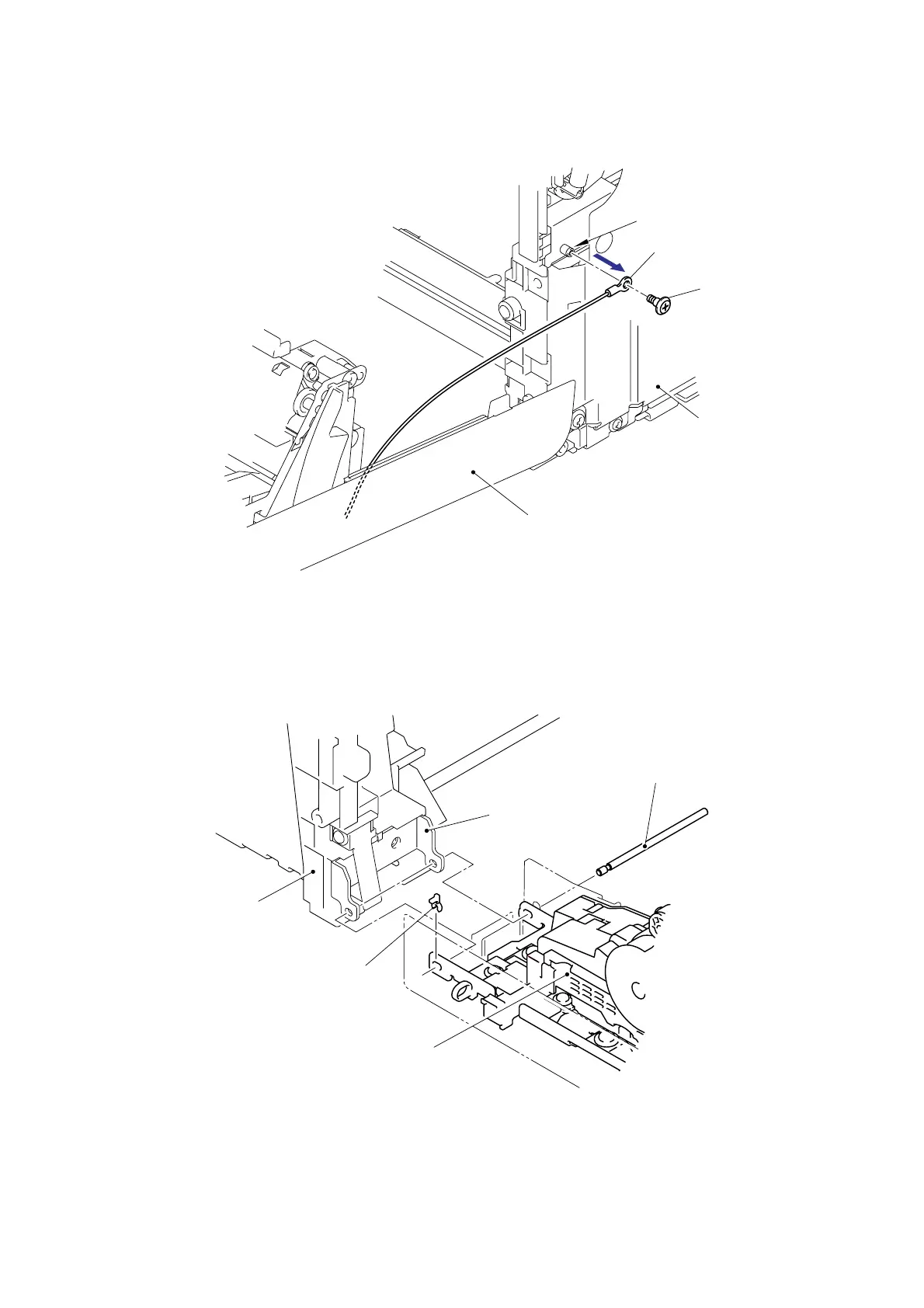

(3) Remove the Shoulder screw fixing the Wire support rope, and then release the Wire support
rope from the Shaft.
Fig. 3-197
(4) Remove the Collar 3 from the Hinge shaft L, and then remove the Hinge shaft L from the
Hinge plate L.
Fig. 3-198
Shaft
Wire support rope
Shoulder screw
Front door unit ASSY
Hinge shaft L
Front door unit ASSY
Collar 3
Frame unit
Frame unit
<Right side>
<Left side>
Hinge plate L
