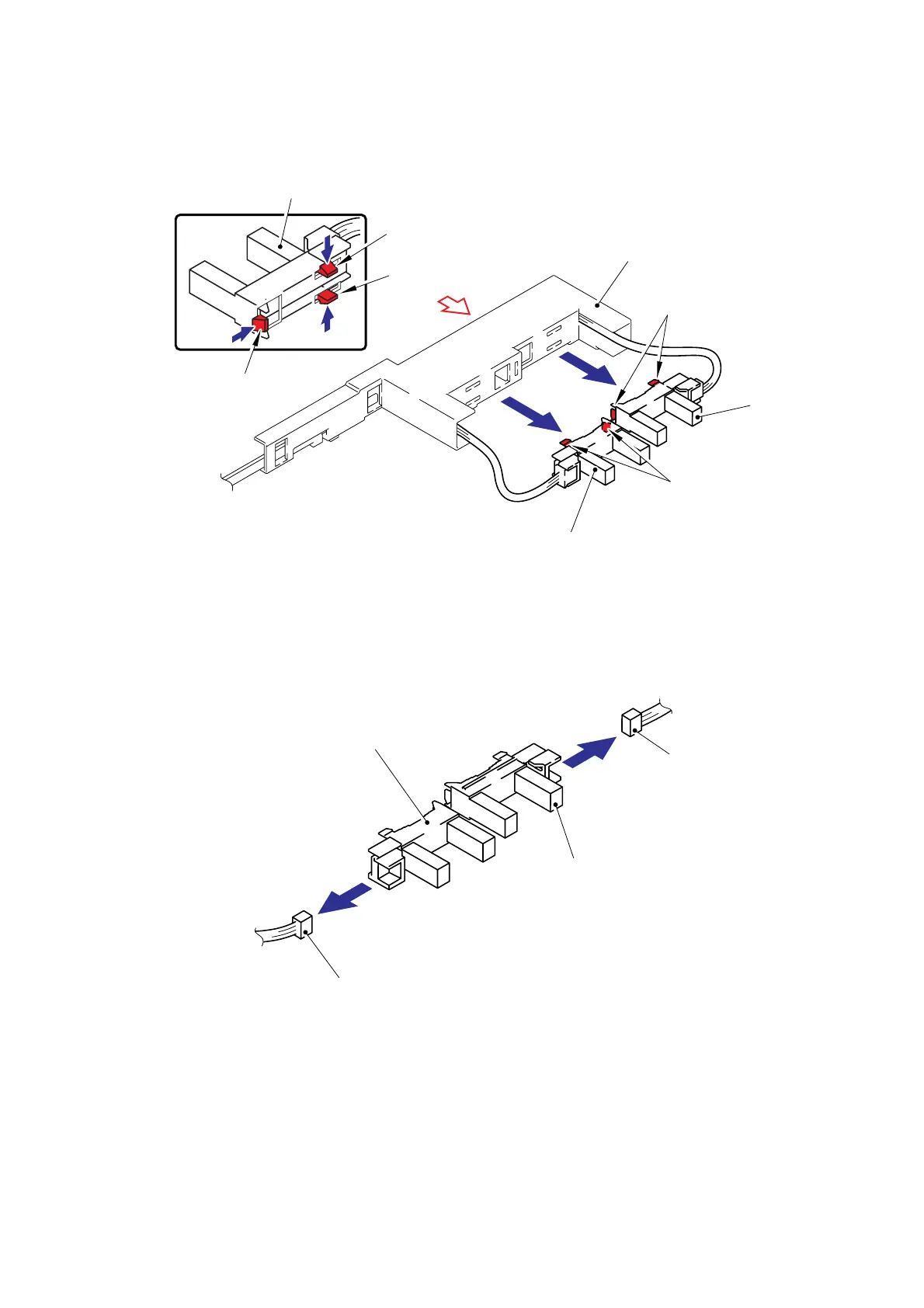

(3) Release the three Hooks of each Waste toner sensor to remove the two Waste toner
sensors from the Waste toner sensor holder.
Fig. 3-219
(4) Disconnect the Connectors (yellow and blue) from each of the Waste toner sensors.
Fig. 3-220
Waste toner sensor holder
Waste toner sensor
Waste toner sensor
Connector (blue)
Waste toner sensor
Waste toner sensor
Connector (yellow)
Hooks
Hooks
Hook
Hook
Hook
Waste toner sensor
“A”
<A view>
