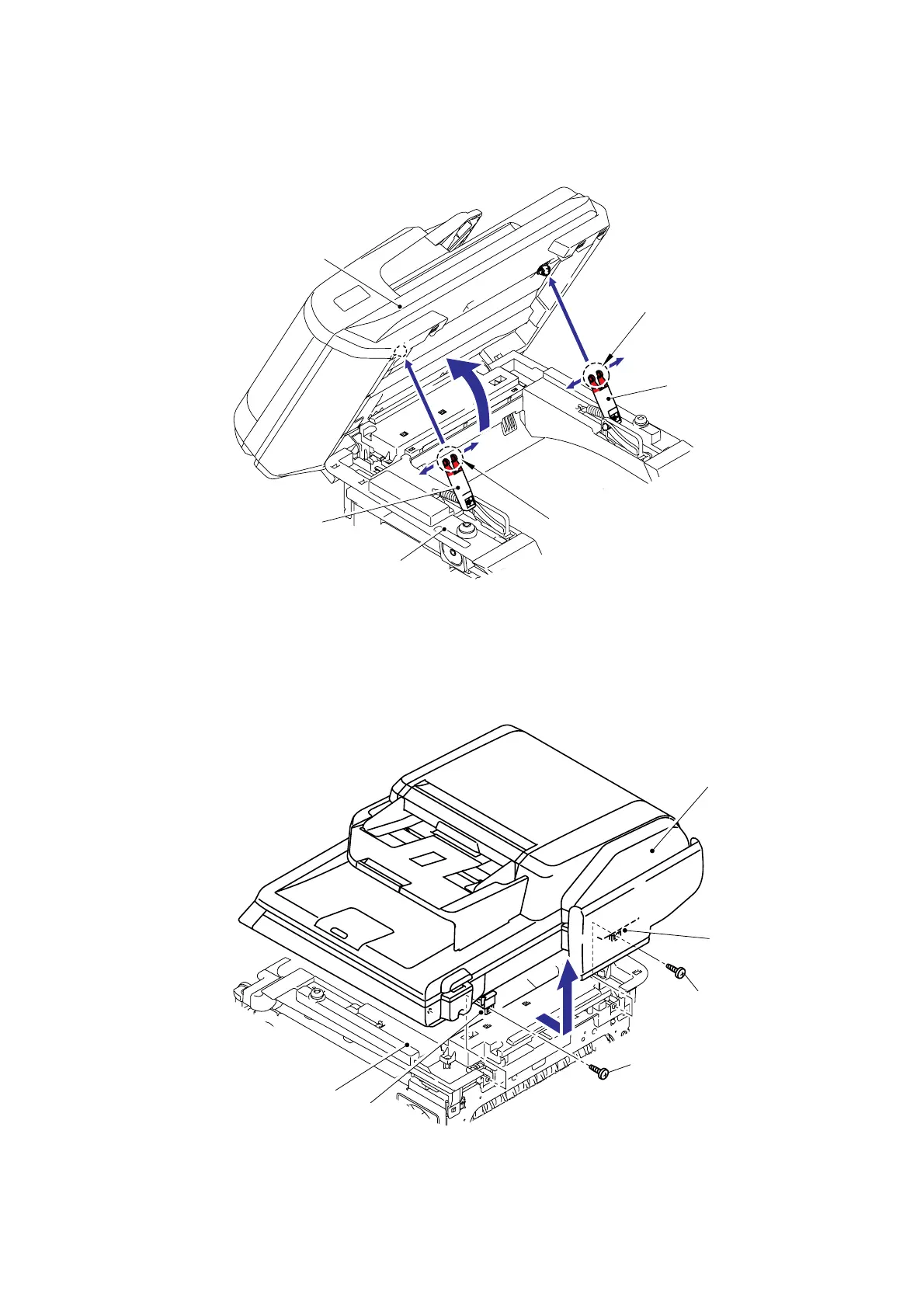

(14) Open the Document scanner unit ASSY, and then release the Hooks of the Pull arms L
and R from the joint of the Document scanner unit ASSY.
Fig. 2-18
(15) Remove the two bind B M4x12 Taptite screws, and then remove the Document scanner
unit ASSY from the Joint cover ASSY.
Fig. 2-19
Hook
Pull arm R
Document scanner unit ASSY
Pull arm L
Joint cover ASSY
Hook
Joint cover ASSY
Document scanner unit ASSY
Taptite, bind B M4x12
Taptite, bind B M4x12
<Back side>
Hinge
Hinge
