Brother MFC-9840CDW - Page 121

Confidential
2-27

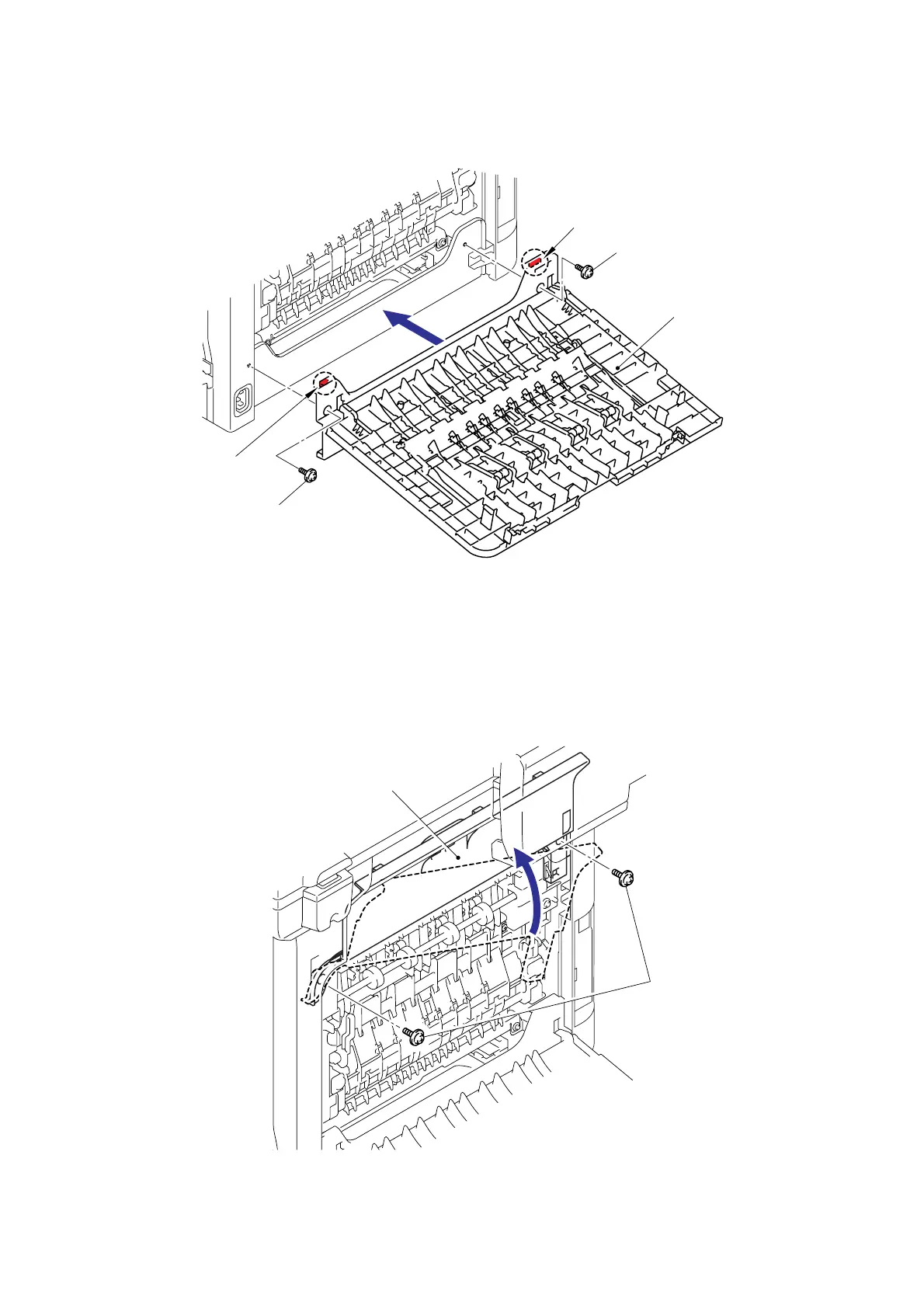

(21) Catch the Hooks of the Back cover ASSY and assemble it with the two cup S M3x8
Taptite screws.
Fig. 2-44
(22) Assemble the Back cover upper with the two cup S M3x8 Taptite screws.
Note:
Be careful not to break the plastic. As this can be difficult to reassemble.
Fig. 2-45
Taptite, cup S M3x8
Back cover ASSY
Taptite, cup S M3x8
<Back side>
Back cover upper
Taptite, cup S M3x8
<Back side>
Hook
Hook
