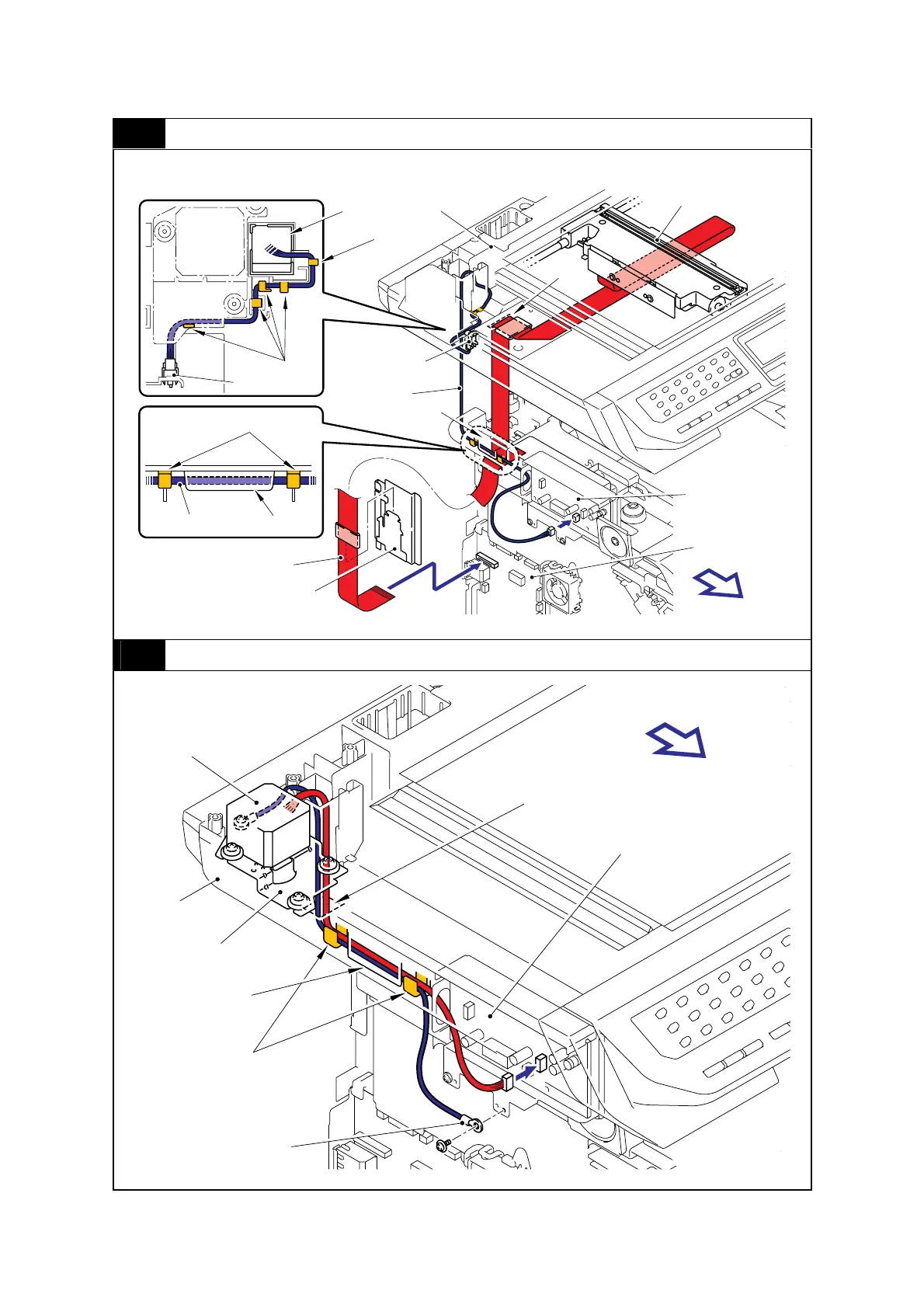

16 Document scanner unit (CCD unit, HP sensor)
17 Document scanner unit (Scanner motor, FG harness FB)
CCD unit
Hole
HP sensor
Document
scanner unit
HP sensor
harness
Driver PCB ASSY
Main PCB ASSY
FFC cable
Harness holder
Hooks
Hooks
HP sensor
Hook
Drive plate
A
SS
Y
HP sensor harness
Scanner motor
Hole
Driver PCB ASSY
Drive plate ASSY
Hooks
FG harness FB
Document
scanner unit
Rib
Front
Rib
Rib
Front
