(4) Remove the two bind B M4x12 Taptite screws, and then remove the Tray cover ASSY.

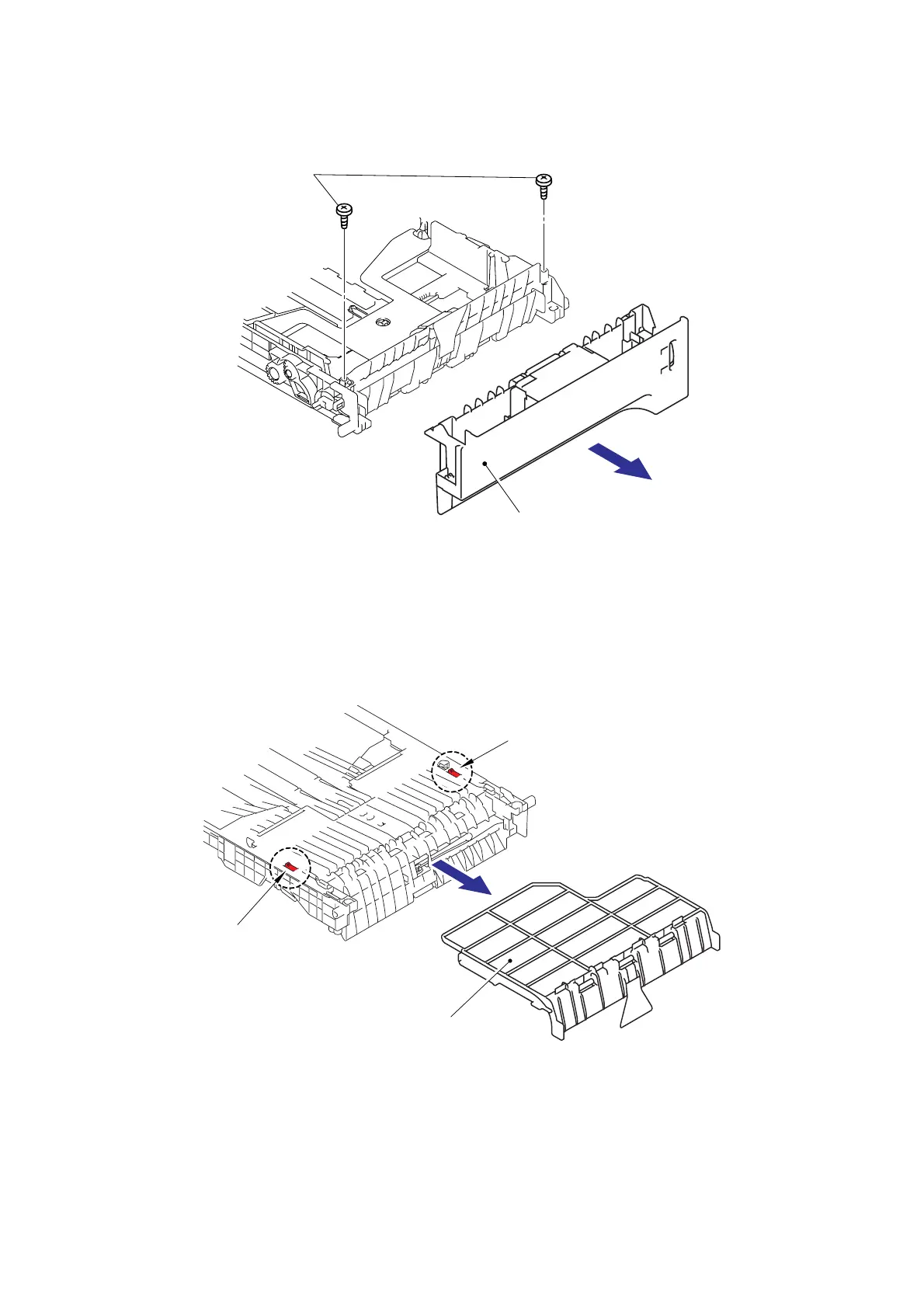

Fig. 3-3
(5) Turn the paper tray upside down.
(6) Release the two Hooks to remove the Paper guide DX ASSY.
Fig. 3-4
Taptite, bind B M4x12
Tray cover ASSY
<Top of paper tray>
Hook
Hook
Paper guide DX ASSY
<Bottom of tray>
