Brother MFC-9840CDW - Page 171

Confidential
3-38

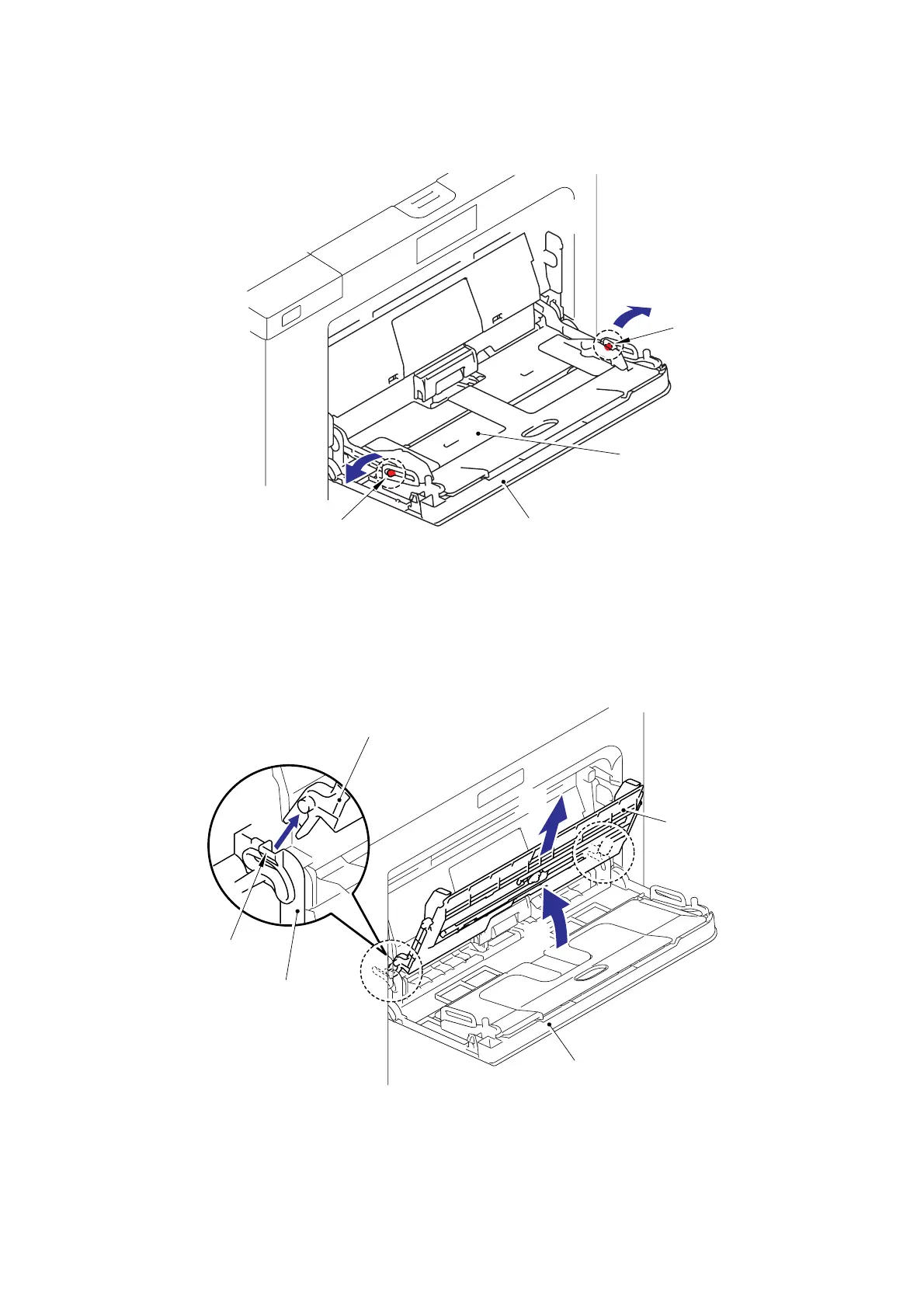

(2) Release the two Bosses of the MP paper guide ASSY.
Fig. 3-7
(3) Lift up the MP paper guide ASSY align the MP paper guide ASSY with section “A” of the
MP lower chute. Bend section “A” then, remove the MP paper guide ASSY.
Fig. 3-8
MP paper guide ASSY
MP cover ASSY
MP paper guide ASSY
Boss
Boss
MP cover ASSY
3a
<Front>
<Front>
“A”
MP paper guide ASSY
MP lower chute
3b
