Assembling Note:
When assembling the Registration relay PCB ASSY, put the section “A” of the Registration
relay PCB ASSY into the section “B” of the Transfer HVPS PCB unit.

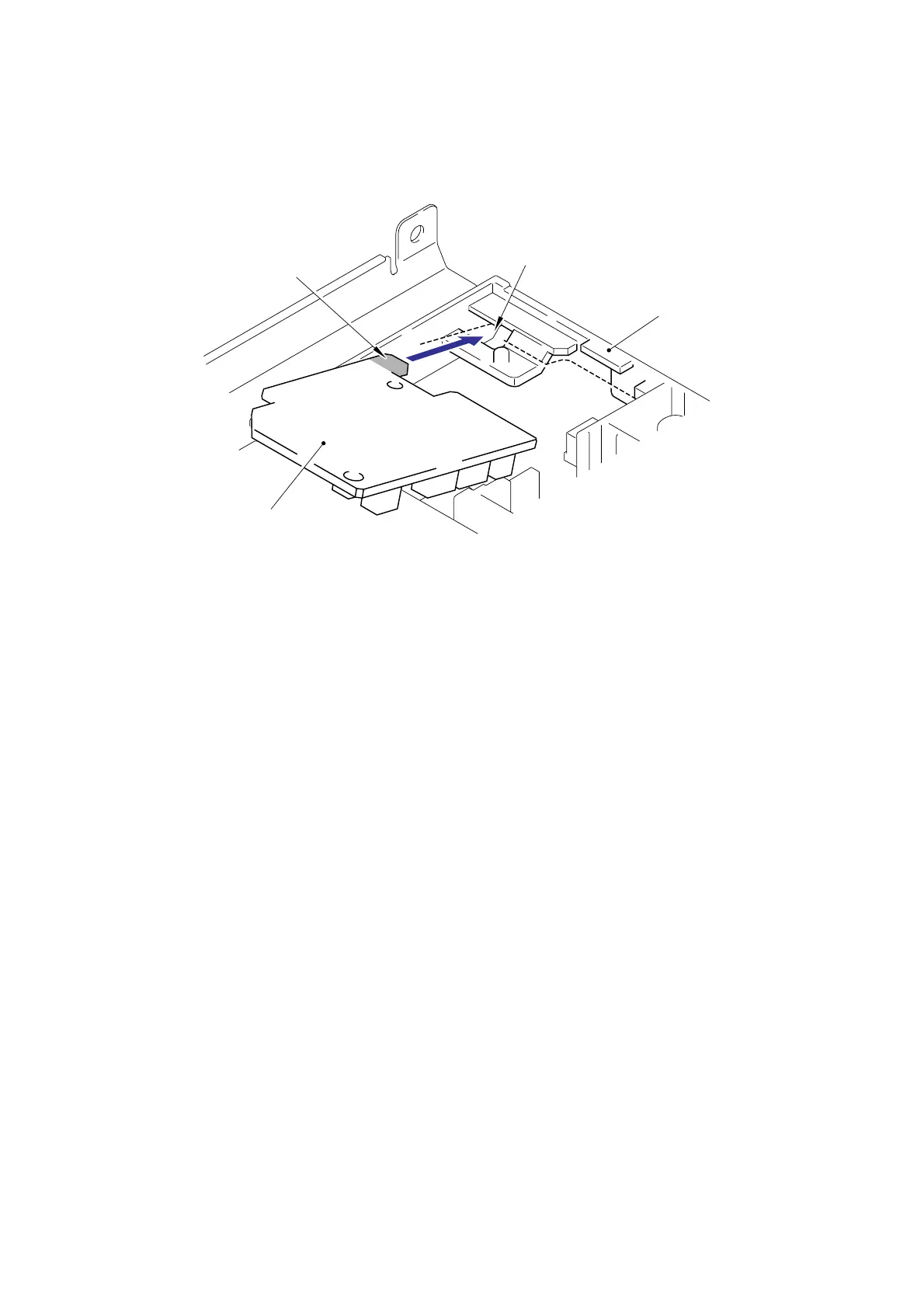

Fig. 3-42
Registration relay PCB ASSY
“B”
“A”
Transfer HVPS PCB unit
<Bottom>
